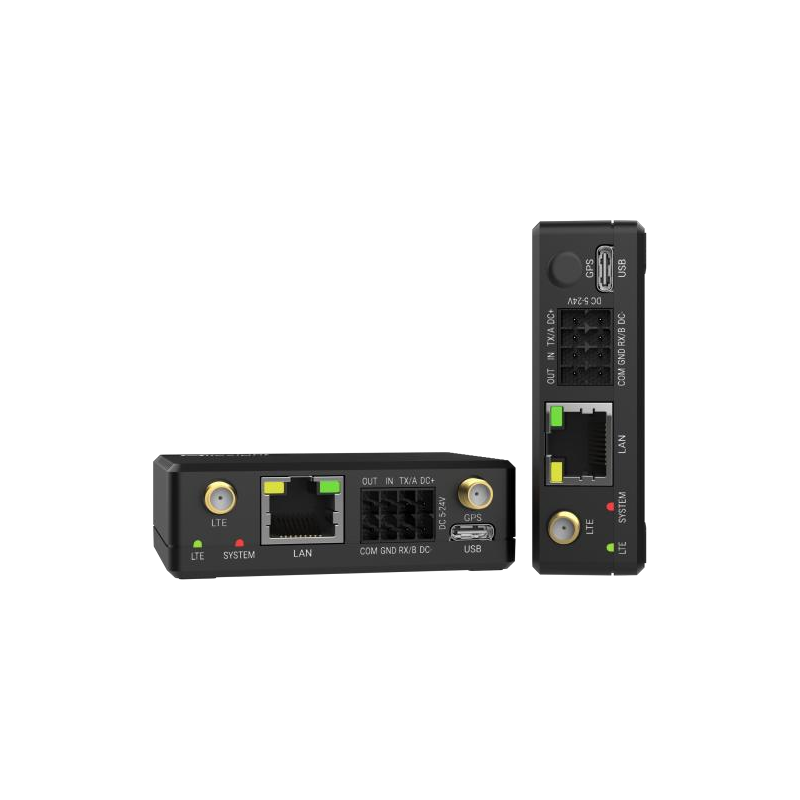

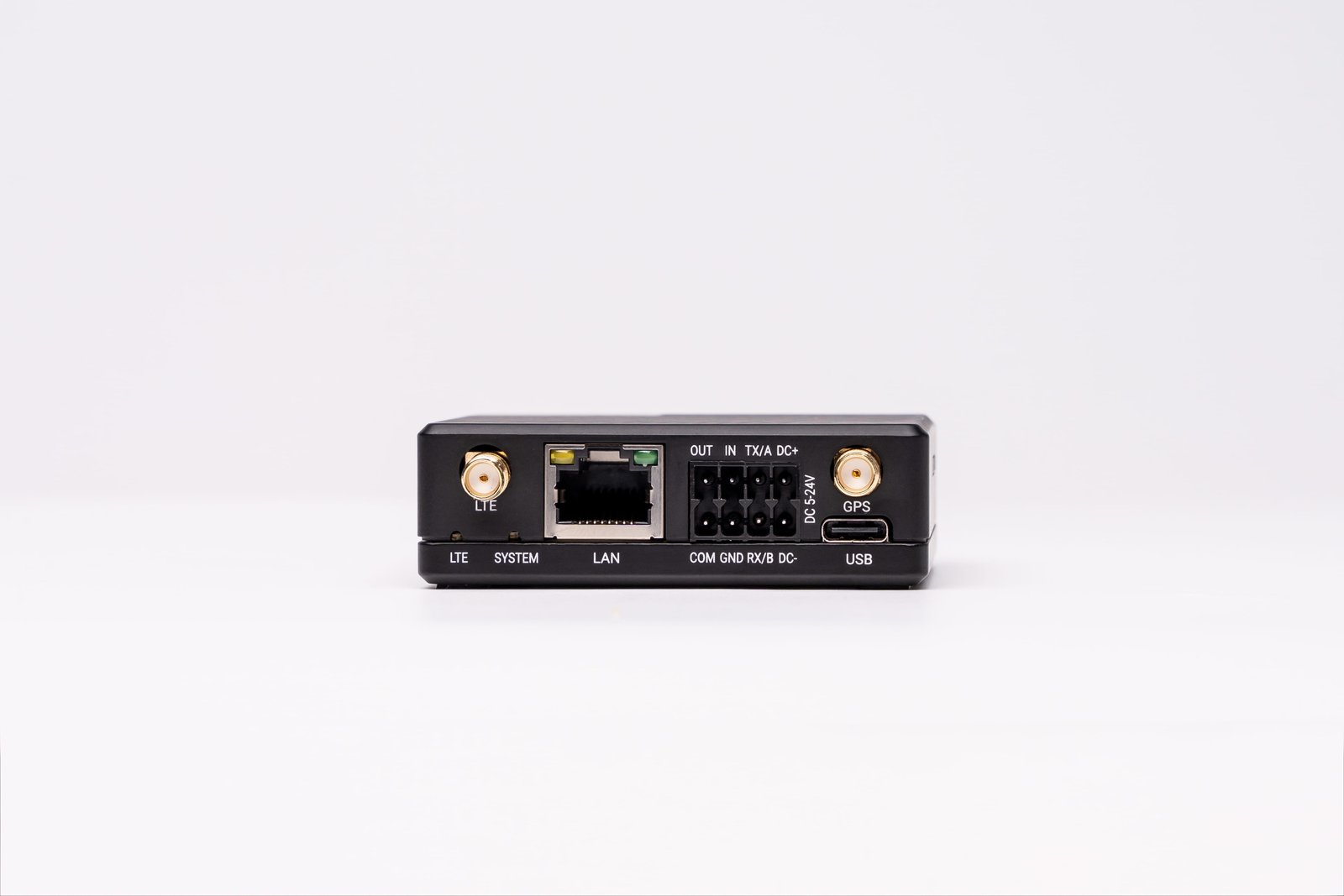

Milesight UR41 Mini Cellular Router
Authorised Milesight UK DistributorPrice range: £86.04 through £115.97 ex VAT (£103.25 – £139.16 inc. VAT)
The Milesight UR41 is a compact 4G LTE CAT 4 industrial router with one 10/100 Mbps LAN port, a switchable RS232/RS485 serial port and 1 digital input plus 1 digital output. It adds GNSS positioning (GPS/GLONASS/Beidou/Galileo/QZSS, 2.5 m CEP) and multi-APN, which the UR41L does not have. Metal IP30 housing, 5-24 VDC, -40°C to +60°C.
Cellular network4G LTE (CAT 4)/WCDMA/GSM (with GNSS and multi-APN)
In stock · typically dispatched within 14 working days from the UK
● Quotes answered within one working day · UK support
Delivery & assurance
- Ships from the UK
- £14.25 flat UK delivery
- Secure checkout — card, Klarna, invoice
- Manufacturer's warranty
Questions about this product? Call our UK team: 023 9223 3611
Description
Milesight mini industrial router UR41(L) supports 4G connection, and also satisfies multi-type local data access requirements through rich industrial interfaces, including DI, DO, RS232 or RS485.
UR41(L) make it easy for forming a reliable, secure, and maintainable solution through its built-in watchdog and secure VPN tunnels, realizing stable data transmission and
high-speed mobile connectivity. With a compact size and industry-grade design, UR41(L) is more flexible in a variety of installation and deployment scenarios.
UR41(L) adopts a power-saving design with both idle mode and standby mode for providing users with an energy-saving option. UR41(L) could be managed and monitored remotely by Milesight DeviceHub, UR41(L) could be applied in wide scenarios including vending machines, robots, industrial equipment, and other IoT applications with optimal cost and performance.
Additional information
| Weight | 0.103 kg |
|---|

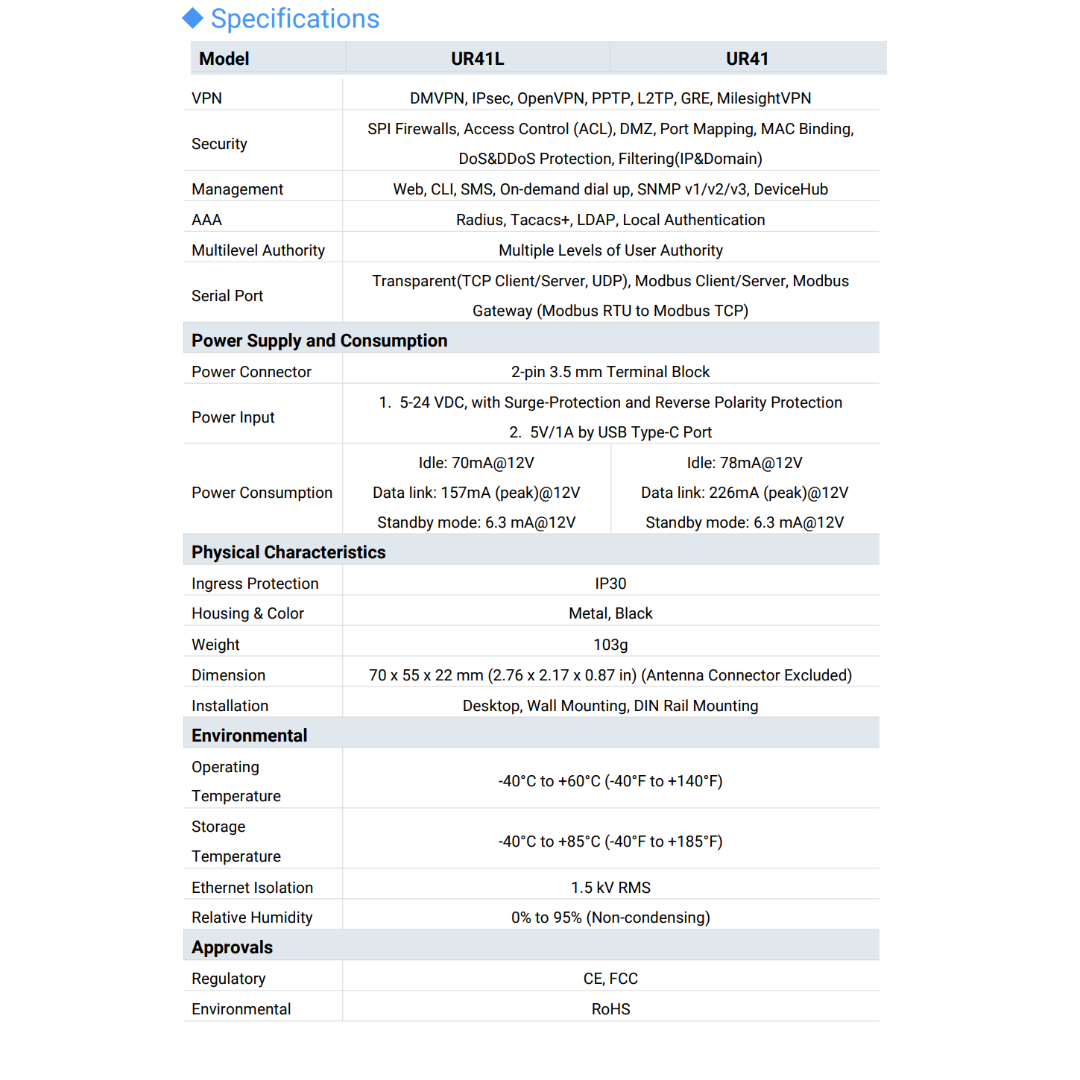

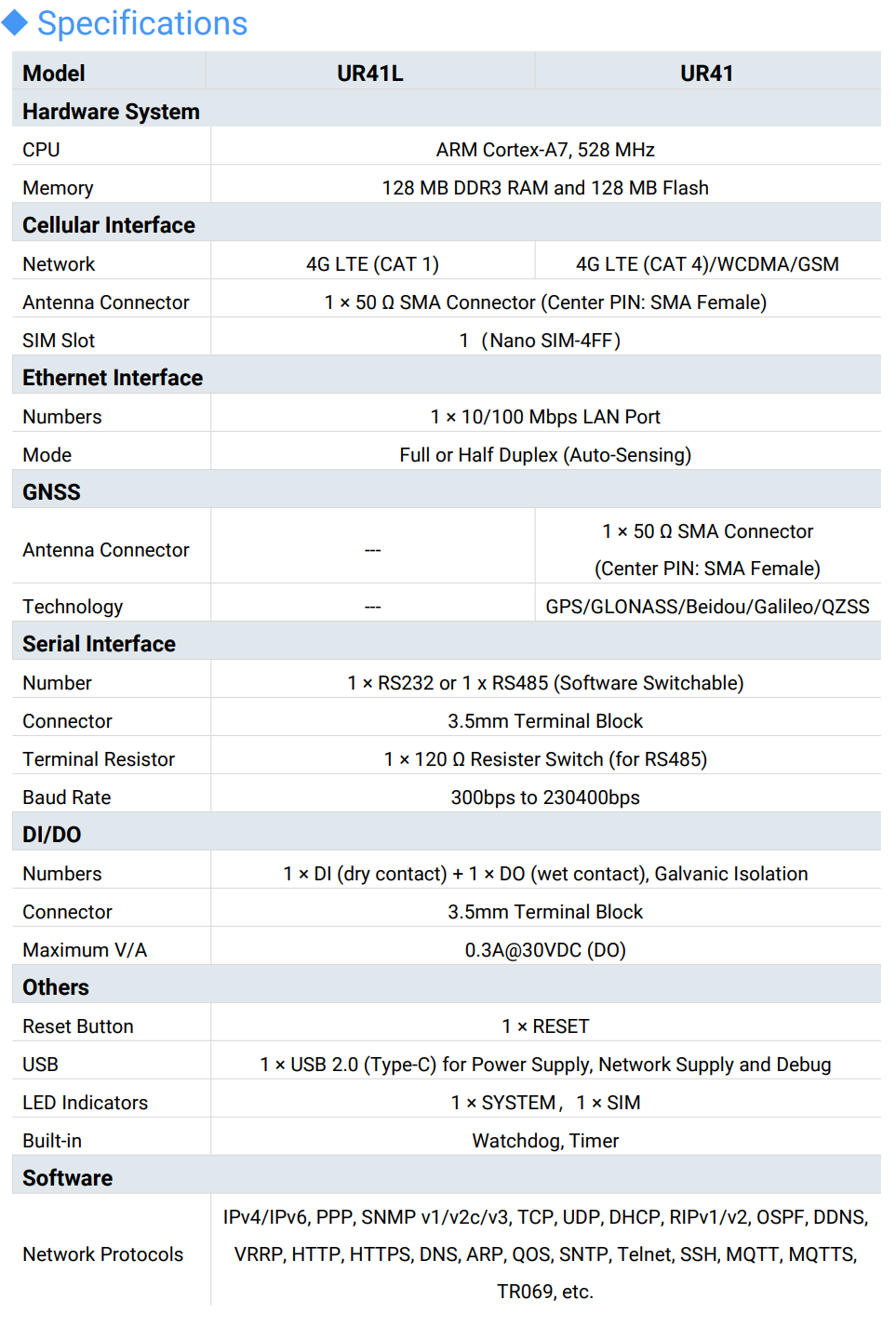

UR41 specifications
| Cellular Network | 4G LTE (CAT 4)/WCDMA/GSM |
|---|---|
| SIM Slot | 1 (Nano SIM-4FF) |
| Cellular Tx Power | LTE: Class 3 (23 dBm ± 2 dB) |
| Cellular Antenna Connector | 1 × 50 Ω SMA connector (centre pin: SMA female) |
| Ethernet | 1 × RJ45 10/100 Mbps LAN port, full or half duplex (auto-sensing), 1.5 kV RMS isolation |
| GNSS | GPS/GLONASS/Beidou/Galileo/QZSS, positioning accuracy 2.5 m CEP (open air), 1 × 50 Ω SMA connector |
| Serial Port | 1 × RS232 or 1 × RS485 (software switchable), 300 bps to 230400 bps, 3.5 mm terminal block |
| DI/DO | 1 × DI + 1 × DO, galvanic isolation; DI dry contact, DO wet contact max 0.3 A@30 VDC |
| CPU / Memory | ARM Cortex-A7, 528 MHz; 128 MB DDR3 RAM and 128 MB Flash |
| VPN | OpenVPN, IPsec, GRE, L2TP, PPTP, DMVPN, WireGuard, ZeroTier |
| Security | Access control, DMZ, port mapping, MAC binding, SPI firewalls, DoS & DDoS protection, IP & domain filtering; AAA (Radius, TACACS+, LDAP, local) |
| Network Protocols | IPv4/IPv6, PPP, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, SSH, MQTT, MQTTS, TR069 |
| Serial Modes | Transparent (TCP client/server, UDP server, MQTT client), Modbus TCP/RTU client, Modbus gateway (RTU to TCP), DLMS client |
| Power Input | 5-24 VDC by 2-pin 3.5 mm terminal block, or 5 V/1 A by USB Type-C |
| Power Consumption | Standby 6.3 mA@12V; idle 78 mA@12V; data link 226 mA@12V |
| Ingress Protection | IP30 |
| Housing & Colour | Metal, black |
| Weight | 103 g |
| Dimensions | 70 × 55 × 22 mm (2.76 × 2.17 × 0.87 in), antenna connector excluded |
| Installation | Desktop, wall mounting, DIN rail mounting |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Relative Humidity | 0% to 95% (non-condensing) |
| Management | Web, CLI (SSH/Telnet), SMS, SNMP v1/v2c/v3, TR069, DeviceHub, Milesight Development Platform |
| Approvals | CE, CE (RED), FCC; RoHS |
Specifications taken from the manufacturer datasheet.
Which version do I need?
The datasheet covers two models. UR41 is the CAT 4 build with WCDMA/GSM fallback, GNSS and multi-APN support, approved CE, CE (RED) and FCC. UR41L is the lower-cost CAT 1 build with no GNSS and no multi-APN, approved CE and CE (RED) only. Choose UR41 where you need CAT 4 throughput, location data, or more than one APN at once.
Typical applications for the UR41
- Vending machine connectivity
- Robot and industrial equipment backhaul
- Remote Modbus RTU-to-TCP gateway duty
- Secure VPN links for unattended field sites
- DIN-rail cabinet 4G connectivity for a single LAN device
- Asset tracking using the onboard GNSS receiver
Buying guides for this product
Complete the stack
Products that work with this one — connect it, power it, and get it online.
-
-
-
Milesight EM320-TH Temperature and Humidity Sensor
EM320-TH £41.90 ex VAT (£50.28 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page -
Milesight TS201 Temperature Sensor
TS201 Price range: £44.89 through £52.37 ex VAT (£53.87 – £62.84 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page
UR41 — frequently asked questions
What is the difference between the UR41 and the UR41L?
UR41 is 4G LTE CAT 4 with WCDMA/GSM fallback and adds GNSS (GPS/GLONASS/Beidou/Galileo/QZSS, 2.5 m CEP) and multi-APN. UR41L is 4G LTE CAT 1 with no GNSS and no multi-APN.
What SIM does it take?
One Nano SIM (4FF). LTE transmit power is Class 3 (23 dBm ± 2 dB) and the cellular antenna uses a 50 Ω SMA connector.
Can it act as a Modbus gateway?
Yes. The serial port supports Modbus TCP/RTU client and Modbus gateway mode (Modbus RTU to Modbus TCP), plus transparent TCP/UDP/MQTT and DLMS client.
How is it powered and how much does it draw?
5-24 VDC through the 2-pin terminal block, or 5 V/1 A over USB Type-C. At 12 V it draws 6.3 mA in standby mode, 78 mA idle and 226 mA on a data link.
Is it rated for cold or outdoor cabinets?
It operates from -40°C to +60°C and stores from -40°C to +85°C, but the enclosure is IP30, so it needs a protective cabinet if used outdoors.
What VPN types does it support?
OpenVPN (multiple clients and a server), IPsec (multiple clients and a server), GRE, L2TP client, PPTP client, DMVPN spoke, WireGuard and ZeroTier.
How much does the Milesight UR41 Mini Cellular Router cost in the UK?
The Milesight UR41 Mini Cellular Router starts at £86.04 ex VAT from Indiott, with the exact figure depending on the variant you choose. Indiott is a UK distributor and invoices with VAT (PSI Technologies Ltd, VAT GB 730 2340 83). UK delivery is a flat £14.25 per order ex VAT, whatever the weight.
What is the lead time and delivery cost for the Milesight UR41 Mini Cellular Router?
The Milesight UR41 Mini Cellular Router is in stock and typically dispatched within 14 working days from the UK. UK delivery is a flat £14.25 per order ex VAT, whatever the weight or how many items you order. We ship to GB and the EU and provide a VAT invoice with every order.
Related products
-
Milesight EM500-SWL Submersible Water Level Sensor
EM500-SWL-868M Price range: £251.38 through £272.33 ex VAT (£301.66 – £326.80 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page -

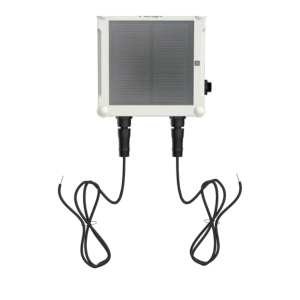

Milesight UC511 Solenoid Valve Controller
