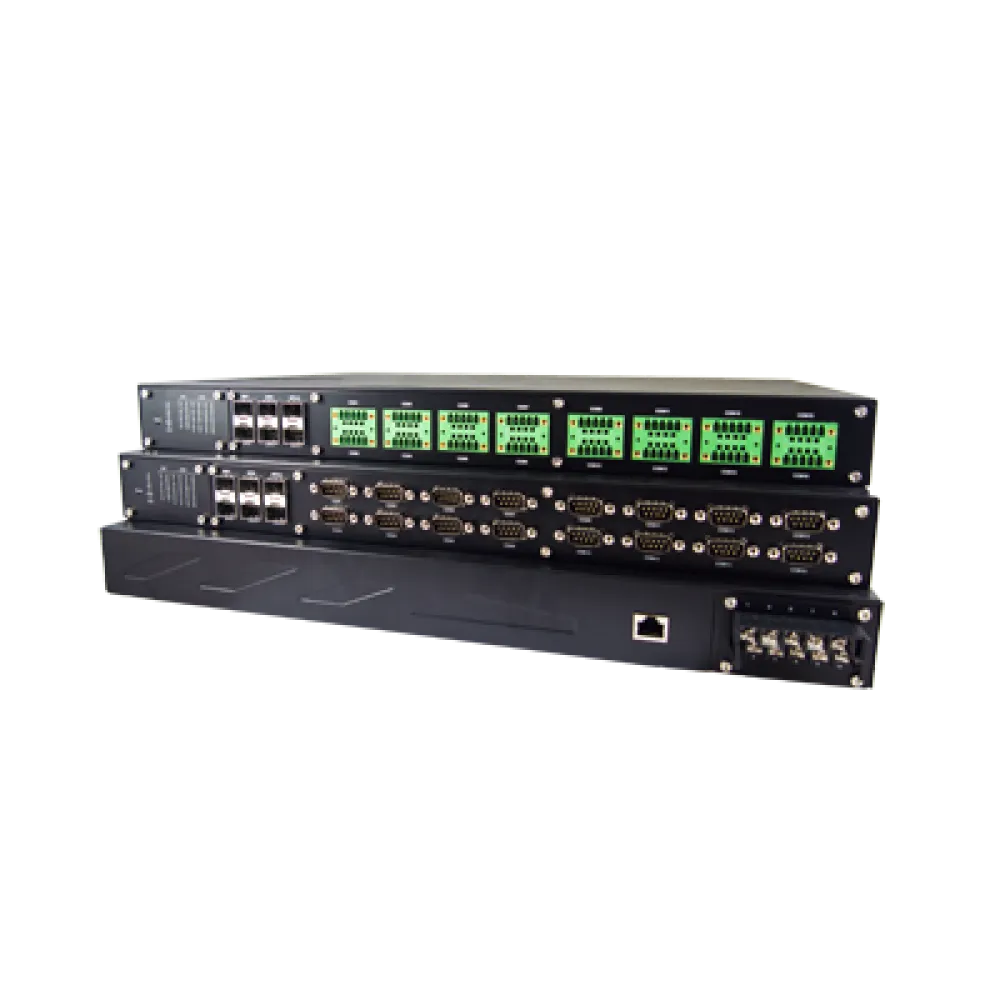

ATOP SE5916A Rugged Serial to Ethernet Device Server
Request a price
SE5916A is a 16-port IEC 61850-3 certified rack-mount industrial serial device server. It provides sixteen RS-232/RS-422/RS-485 ports at 1,200 to 921,600 bps and six Fast Ethernet interfaces, either RJ45 or SFP, with redundant 24-48 VDC or 100-240 VAC/100-370 VDC power. Choose it over the 8-port SE5908A when sixteen serial ports are needed in a substation.
Serial ports16 (SE5916A)
● Quotes answered within one working day
Available to order · request a quote for price and lead time
Delivery & assurance
- Ships from the UK
- UK & EU delivery, quoted with your price
- Pay by card or invoice
- Manufacturer's warranty
Questions about this product? Call our UK team: 023 9223 3611
Description
16‑Port IEC61850‑3 Certified Industrial Rack‑Mounted Secure Serial Device Server.
The Industrial Serial Device Server SE5916A is a high-profile, high performance wide temperature gateway for Ethernet (TCP/IP) and serial signal communications; allowing almost any serial device to be connected to a new or existing Ethernet network. By encapsulating serial data and transporting it over Ethernet, it offers full-duplex and bi-directional data seamlessly between the serial port and the Ethernet network.
SE5916A specifications
| Serial ports | 16 (SE5916A) |
|---|---|
| Serial mode | RS-232/422/485 software selectable |
| Serial connector | D-Sub9 (DB models, supporting only 5-pin RS-232 mode) or 5.08mm 5-pin terminal block (TB models) |
| Serial port isolation | 3 kV isolation (SiS version only) |
| Baud rate | 1,200-921,600 bps software selectable |
| Data bits / stop bits | 5, 6, 7, 8 software selectable / 1, 2 software selectable |
| Parity | None, Odd, Even, Mark, Space |
| Flow control | None, Xon/Xoff, RTS/CTS (RS-232 only) |
| Ethernet ports | RJ45 x 6 (RJ45 version) or SFP x 6 (SFP version) |
| Ethernet standards | IEEE 802.3 10BaseT, IEEE 802.3u 100BaseT(X) (RJ45), IEEE 802.3u 100Base-FX (SFP) |
| Substation certification | IEC 61850-3 / IEEE 1613 |
| Protocols | IPv4, ICMP, TCP, UDP, DHCP Client, SNMPv1/v2c/v3, HTTP, HTTPS, Telnet, RFC2217, 802.1D-2004 RSTP, SMTP/TLS |
| Security | OpenVPN Client/Server and IPsec (host-to-host or host-to-side) up to 37.9Mbps VPN throughput, plus PPTP |
| Link modes | TCP Client (single destination or VirtualCOM); TCP Server (4 connections); UDP up to 4 IP ranges |
| Rated supply voltage | Redundant 24-48 VDC or redundant 100-240 VAC / 100-370 VDC (HV series) |
| Input voltage range | Redundant 19.2-52.8 VDC or redundant 85-264 VAC / 100-370 VDC (HV series) |
| Input current | 0.73 A @ 24 VDC; 0.35 A @ 100 VAC; 0.20 A @ 100 VDC |
| Power consumption | Approximately 20 W |
| Power redundancy | Yes; 10-pin terminal block, reverse polarity protection |
| Operating temperature | -40°C to 80°C (-40°F to 176°F) |
| Ambient relative humidity | 5%-95%, 55°C (non-condensing) |
| Housing | IP30 SPCC housing |
| Dimensions (W x H x D) | 440.6 x 44 x 309 mm (1U rack-mount) |
| Weight | 4 kg |
| Installation | 19" rack mount (rack-mount kit included) |
| MTBF | SE5916A-6SFP-Sis-HV: 9.18 years; SE5916A-6SFP-Sis: 8.63 years |
| Warranty | 5 years |
Specifications taken from the manufacturer datasheet.
Which version do I need?
Documented suffixes: no suffix gives 10/100BASE-T(X) RJ45 uplinks, -6SFP gives six 100BASE-FX SFP slots; -TB replaces the DB9 serial connectors with 5-pin terminal blocks; -Sis adds 3 kV serial isolation; -HV takes high-voltage 100-240 VAC or 100-370 VDC input instead of 24-48 VDC. Note that DB models support only 5-pin RS-232 mode, so RS-422/RS-485 wiring needs a -TB or -Sis model. An SDK programmable version is available on request from ATOP.
Typical applications for the SE5916A
- IEC 61850-3 electrical substation automation
- Utility SCADA sites needing redundant power feeds
- High-density rack aggregation of IEDs, protection relays and meters
- Mission-critical installations requiring -40°C to 80°C operation
- Fibre-linked serial connectivity in high-EMI switchyards using the 6SFP version
- Secure remote access to serial equipment over OpenVPN or IPsec
Complete the stack
Products that work with this one — connect it, power it, and get it online.
SE5916A — frequently asked questions
Is the SE5916A certified for power substations?
Yes. The datasheet lists IEC 61850-3 / IEEE 1613 among its approvals, alongside EN 55032 Class A, EN 61000-6-2 and EN 61000-6-4, and it is described as suitable for setting up into IEC 61850-3 substations.
What is the difference between the SE5916A and the SE5908A?
Serial port count: the SE5916A has 16 ports and the SE5908A has 8. Both share the same 440.6 x 44 x 309 mm 1U chassis, six Fast Ethernet interfaces, redundant power and -40°C to 80°C operating range.
Can the DB9 model do RS-422 or RS-485?
The connector row states that DB models support only 5-pin RS-232 mode. If you need RS-422 or RS-485 wiring, order a -TB model with 5.08mm 5-pin terminal blocks, or a -Sis model which also adds 3 kV isolation.
What power inputs are available?
Redundant 24-48 VDC (19.2-52.8 VDC range) or, on HV models, redundant 100-240 VAC / 100-370 VDC (85-264 VAC range), both on a 10-pin terminal block with reverse polarity protection. Consumption is approximately 20 W.
How immune is it to substation interference?
Tested to IEC 61000-4-2 ESD at ±8kV contact and ±15kV air (level 4), IEC 61000-4-3 radiated at 20 V/m, IEC 61000-4-4 EFT at ±4.0KV on AC, DC and signal ports (level 4), and IEC 61000-4-8 power-frequency magnetic field at 100 A/m continuous and 1000 A/m for 1 second.
