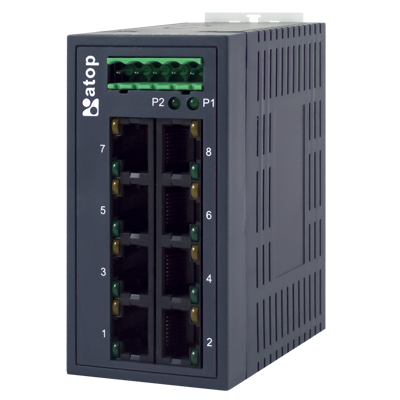

ATOP EH2008 Industrial Unmanaged Ethernet Switch
Request a price
The EH2008 is an ATOP unmanaged industrial Ethernet switch with 8 ports, all 10/100BaseT(X) copper. Choose it over the 5-port EH2005 or 6-port EH2006 when you need eight device connections in one DIN-rail cabinet. It accepts a wider 9~48 V supply with redundant input, operates 0~60°C and is rated IP30.
Total number of ports8 ports, all 10/100BaseT(X) copper
● Quotes answered within one working day
Available to order · request a quote for price and lead time
Delivery & assurance
- Ships from the UK
- UK & EU delivery, quoted with your price
- Pay by card or invoice
- Manufacturer's warranty
Questions about this product? Call our UK team: 023 9223 3611
Description
EH2008 with 8 RJ-45 ports for your industrial applications. It designs to work in the industrial environment, such as in hazardous locations, where it complies with CE, FCC, UL, and RoHS standards.
EH2008 protects itself from receiving too many broadcast packets. During normal use, broadcast packets will be forwarded to all ports except the source port. However, it will discard broadcast or multicast packets if the number of those packets exceeds a threshold in a preset period of time.
EH2008 provides two redundant power inputs that can be connected simultaneously to wide-range DC power sources. If one of the power inputs failure, the other live source acts as a backup to provide the EH2008 power needs automatically.
EH2008 specifications
| Switch type | Unmanaged |
|---|---|
| Total number of ports | 8 |
| Fast Ethernet 10/100BaseT(X) | 8 |
| Fast Ethernet fibre ports (SFP, LC or ST) | None |
| PoE/PoE+ ports | None |
| Power input | 9~48 V |
| Power redundancy | Supported |
| Relay output | None |
| Housing | Plastic |
| Installation | DIN-Rail |
| Ingress protection | IP30 |
| Dimensions (L x W x H) | 45 x 90 x 80 mm |
| Operating temperature | 0~60° C |
| Storage temperature | -40~60° C |
| Compliance | UL/EN/IEC(CB) 60950-1 and/or 62368-1; EN60950-1 and/or EN62368-1 |
| Management protocols | None (no SNMP, VLAN, QoS, STP/RSTP or IGMP) |
Specifications taken from the manufacturer datasheet.
Which version do I need?
Within the plastic-housed EH20xx family the suffix is the port count: EH2005 has 5 ports (4 copper + 1 fibre), EH2006 has 6 copper, EH2008 has 8 copper. The EH2008 also takes a wider 9~48 V input where the EH2005 and EH2006 take 9~30 V. The aluminium-housed EH2308 is the 8-port model with a wider -10~70°C range.
Complete the stack
Products that work with this one — connect it, power it, and get it online.
EH2008 — frequently asked questions
How many ports does the EH2008 have?
Eight 10/100BaseT(X) copper ports. There is no fibre port and no Gigabit port on this model.
Does the EH2008 support PoE?
No. No PoE or PoE+ ports are listed on the EH2008, so IP cameras and other powered devices need a separate injector or a PoE switch.
What voltage range does it accept?
9~48 V, which is wider than the 9~30 V of the EH2005 and EH2006. Redundant power input is supported.
Is it a managed switch?
No. It is unmanaged, with no SNMP, VLAN, QoS, STP/RSTP or IGMP support listed.
What temperature range does it tolerate?
0~60°C operating, -40~60°C storage. If the cabinet drops below freezing, the aluminium-housed EH2308 covers -10~70°C instead.
How much does the ATOP EH2008 Industrial Unmanaged Ethernet Switch cost in the UK?
The ATOP EH2008 Industrial Unmanaged Ethernet Switch is supplied to order and priced on application. Send a quote request and we confirm the price and lead time in writing, usually the same working day. No account is needed. Indiott is a UK distributor invoicing with VAT (PSI Technologies Ltd, VAT GB 730 2340 83).
What is the lead time and delivery cost for the ATOP EH2008 Industrial Unmanaged Ethernet Switch?
The ATOP EH2008 Industrial Unmanaged Ethernet Switch is supplied to order. We confirm the lead time in writing with your quote, before you commit to anything. UK delivery is a flat £14.25 per order ex VAT, whatever the weight or how many items you order. We ship to GB and the EU and provide a VAT invoice with every order.
