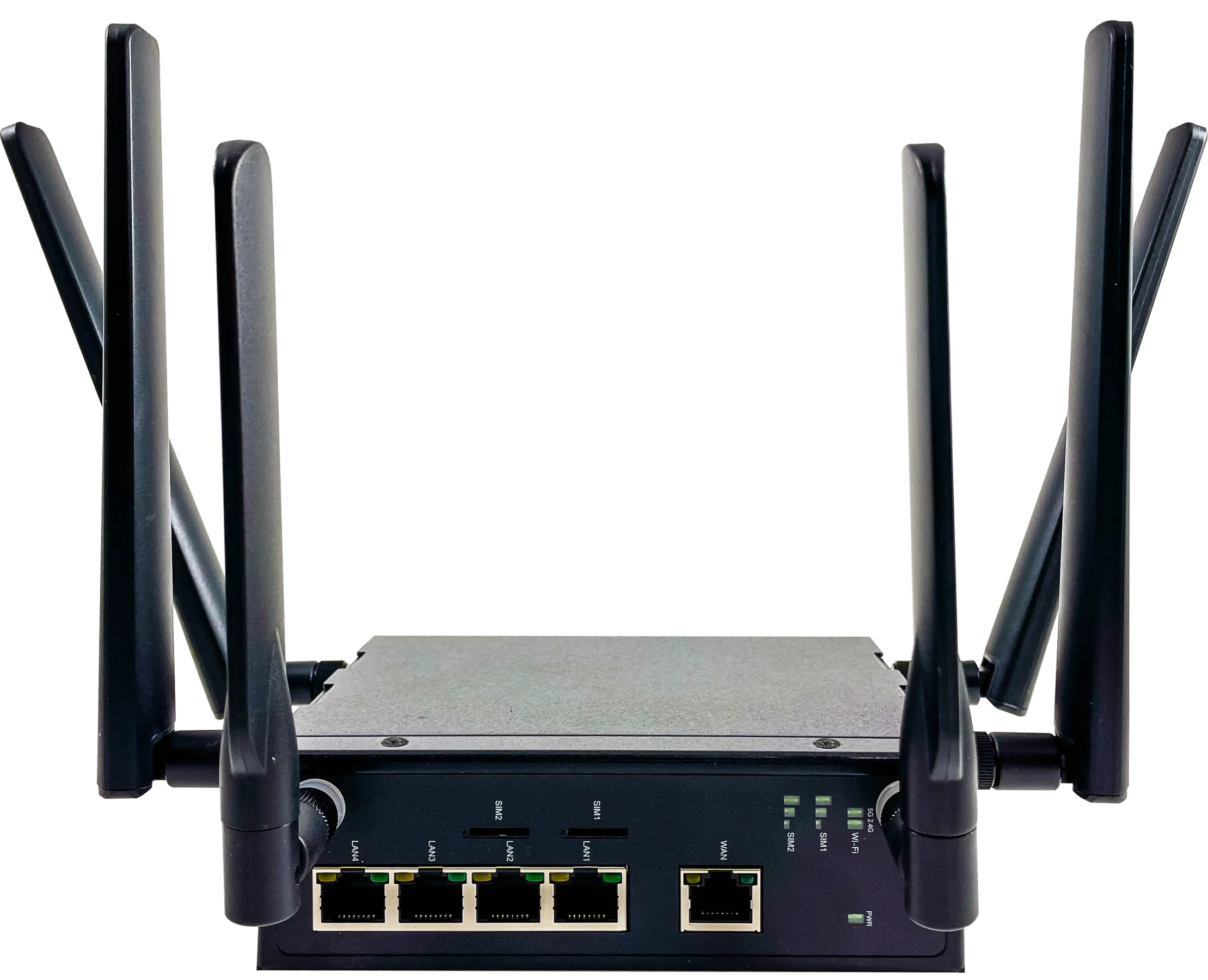

ATOP CWR5805 Industrial 5G / 4G Router
Request a price
The ATOP CWR5805 is an industrial 4G/5G (Sub-6) router with dual-SIM backup, one Gigabit WAN and four Gigabit LAN RJ45 ports, and dual-band IEEE 802.11 a/b/g/n/ac Wi-Fi with 2×2 MU-MIMO and mesh. It provides a firewall, OpenVPN/IPsec VPN and mobile/Ethernet WAN failover, takes 12-48 VDC or optional 802.3af PoE, and operates from -40°C to +75°C on DIN rail or field mount.
Cellular4G/5G (Sub-6) with dual-SIM backup and WAN failover
● Quotes answered within one working day
Available to order · request a quote for price and lead time
Delivery & assurance
- Ships from the UK
- UK & EU delivery, quoted with your price
- Pay by card or invoice
- Manufacturer's warranty
Questions about this product? Call our UK team: 023 9223 3611
Description
The ATOP CWR5805 is an industrial cellular router from ATOP’s 5G, 4G and Wi-Fi router range, providing wide-area connectivity for equipment on sites without fixed-line internet. It gives remote plant, cabinets and outstations a managed, always-on mobile WAN link for telemetry, remote access and cloud integration, routing traffic between local field devices and the cellular network. Like the rest of ATOP’s industrial networking line it is engineered for demanding field deployments rather than office use. Typical UK applications include utility telemetry, transport and distributed monitoring where a resilient cellular uplink is required. Browse the full 5G, 4G and Wi-Fi router range.
CWR5805 specifications
| Cellular | 4G/5G (Sub-6) |
|---|---|
| SIM Slots | 2 (dual-SIM backup) |
| WAN Failover | Mobile and Ethernet WAN backup/failover |
| RJ45 Ports | 5 × 10/100/1000BASE-T(X): 1 × WAN, 4 × LAN |
| PoE Ports | None on CWR5805; 4 × PoE LAN ports on CWR5805P |
| Wireless | IEEE 802.11 a/b/g/n/ac: 2.4 GHz 802.11 b/g/n, 5 GHz 802.11 a/n/ac |
| Antenna | 2×2 MU-MIMO |
| Operating Modes | Wi-Fi router, router satellite for mesh |
| Wi-Fi Mesh | Yes, with roaming between mesh nodes |
| VPN | OpenVPN, IPsec |
| Security Features | Firewall |
| Input Voltage | 12-48 VDC, 1 power input |
| PoE Input | Optional, IEEE 802.3af powered device |
| Mounting | DIN-rail or field mount |
| Housing | Metal housing |
| Operating Temperature | -40°C to +75°C |
| EMC | Industrial EMC protection |
| Certifications | RED (2014/53/EU), CE (EN 61000-6-2, EN 61000-6-4), FCC Part 15 Subpart B Class A, UL 60950-1 and/or UL 62368, EN 60950-1 and/or EN 62368 |
Specifications taken from the manufacturer datasheet.
Which version do I need?
This page covers the CWR5805 series. ATOP's brochure lists CWR5805 with 4 × non-PoE LAN ports and CWR5805P with 4 × PoE LAN ports; both have one Gigabit WAN, 5G/LTE with dual SIM, dual-band 802.11ac and mesh. Related models: the CWG5804 and CWG5804P gateways add 1 × RS-232/RS-485 COM port and 1 × DIO, the CR5201B is a single-WAN router with 2 LAN ports, and the AWR5805 is the same Wi-Fi mesh router without cellular. ATOP's selection guide ticks RED (2014/53/EU) for the CWR5805; confirm the cellular band set for your UK network when ordering.
Typical applications for the CWR5805
- Remote network sites linked to head office over an IPsec VPN tunnel
- Telemetry and remote access for unmanned utility cabinets and outstations without fixed-line internet
- Cellular backup for a fixed-line WAN using mobile/Ethernet failover
- Wi-Fi mesh coverage with a cellular uplink at warehouses and yards
- Transport and distributed monitoring sites needing a 5G uplink
- Cloud integration for field devices on a small DIN-rail LAN
Complete the stack
Products that work with this one — connect it, power it, and get it online.
CWR5805 — frequently asked questions
What cellular connection does the CWR5805 have?
4G/5G on Sub-6 bands, with two SIM slots for backup. ATOP's selection guide also ticks mobile and Ethernet WAN backup/failover.
How many Ethernet ports does it have?
Five 10/100/1000BASE-T(X) RJ45 ports: one WAN and four LAN. The CWR5805P version has four PoE LAN ports.
Does it provide Wi-Fi and mesh as well as cellular?
Yes. It has dual-band Wi-Fi (802.11 b/g/n on 2.4 GHz, 802.11 a/n/ac on 5 GHz) with 2×2 MU-MIMO, and can act as a Wi-Fi router or a router satellite in an ATOP Wi-Fi mesh.
Which VPN and security features are supported?
A firewall and OpenVPN or IPsec tunnels for secure data transmission.
What is the difference between the CWR5805 and the AWR5805?
The CWR5805 adds the 4G/5G (Sub-6) interface, dual-SIM backup and mobile/Ethernet WAN failover. Ports, Wi-Fi, mesh, VPN and the 12-48 VDC or 802.3af PoE power input are the same per ATOP's selection guide.
What is the difference between the CWR5805 and the CR5201B?
The CWR5805 has 1 WAN plus 4 Gigabit LAN ports, dual SIM, 2×2 MU-MIMO Wi-Fi and mesh. The CR5201B is a single-WAN router with 2 LAN ports, MIMO Wi-Fi and router or bridge mode, without mesh.
What power, temperature and approvals apply?
12-48 VDC on one input or optional IEEE 802.3af PoE, -40°C to +75°C operation, DIN-rail or field mounting. ATOP's guide ticks RED 2014/53/EU, CE (EN 61000-6-2/-6-4), FCC Part 15 Subpart B Class A, UL 60950-1 and/or UL 62368 and EN 60950-1 and/or EN 62368.
