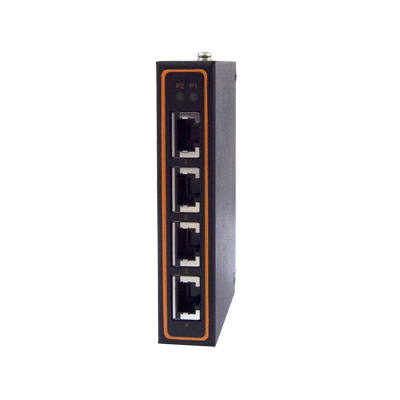

ATOP EH2304-PR Industrial Unmanaged Ethernet Switch
Request a price
The EH2304-PR is an ATOP unmanaged industrial Ethernet switch with four 10/100BaseT(X) ports. Its distinguishing feature is the slim 22.5 mm-wide metal housing, half the width of the 45 mm EH20xx and EH23xx models, for DIN-rail cabinets where space is tight. It takes 9~48 V with redundant input and operates -10~70°C.
Housing width22.5 mm wide (22.5 x 110 x 78 mm) - half the width of the 45 mm EH20xx and EH23xx models
● Quotes answered within one working day
Available to order · request a quote for price and lead time
Delivery & assurance
- Ships from the UK
- UK & EU delivery, quoted with your price
- Pay by card or invoice
- Manufacturer's warranty
Questions about this product? Call our UK team: 023 9223 3611
Description
EH2304-PR are with 4 RJ-45 ports for your industrial applications. They are designed to work in the industrial environment, such as in hazardous locations and compliant with CE, FCC, UL, and RoHSII standards.
EH2304-PR protect themselves from receiving over broadcast packets. During normal use, broadcast packets will be forwarded to all ports, except the source port. However, it will discard broadcast or multicast packets if the number of those packets exceeds a threshold in a preset period of time. When the preset period expires (about 800ms), it will then resume receiving broadcast or multicast packets until the threshold is reached again.
EH2304-PR provides two redundant power inputs that can be connected simultaneously to wide-range DC power sources. If one of the power inputs failure, the another live source acts as a backup to provide the EH2304-PR power input automatically.
EH2304-PR specifications
| Switch type | Unmanaged |
|---|---|
| Total number of ports | 4 |
| Fast Ethernet 10/100BaseT(X) | 4 |
| PoE/PoE+ ports | None |
| Power input | 9~48 V |
| Power redundancy | Supported |
| Relay output | None |
| Housing | Metal |
| Installation | DIN-Rail |
| Ingress protection | IP30 |
| Dimensions (L x W x H) | 22.5 x 110 x 78 mm |
| Operating temperature | -10~70° C |
| Storage temperature | -40~85° C |
| Compliance | UL/EN/IEC(CB) 60950-1 and/or 62368-1; EN60950-1 and/or EN62368-1 |
| Management protocols | None (no SNMP, VLAN, QoS, STP/RSTP or IGMP) |
Specifications taken from the manufacturer datasheet.
Complete the stack
Products that work with this one — connect it, power it, and get it online.
EH2304-PR — frequently asked questions
How wide is the EH2304-PR on the DIN rail?
22.5 mm. Full dimensions are 22.5 x 110 x 78 mm, against 45 x 90 x 78 mm for the standard EH23xx models, so it takes half the rail width.
How many ports does it have?
Four 10/100BaseT(X) copper ports. There is no fibre port and no Gigabit port.
Does it support PoE?
No. No PoE or PoE+ ports are listed on the EH2304-PR.
What temperature range does it tolerate?
-10~70°C operating and -40~85°C storage, wider than the plastic-housed EH2005, EH2006 and EH2008, which are rated 0~60°C.
What power supply does it need?
A 9~48 V supply, with redundant power input supported.
