ATOP EMG8510 Industrial Managed Ethernet Switch
Request a price
The ATOP EMG8510 is an IP67 Layer 2 managed Gigabit switch with 8 × 10/100/1000 M12 ports plus 2 × 1000BASE-X SFP slots for a fibre uplink. Up to 8 M12 ports deliver IEEE 802.3af/at PoE at up to 30 W each within a 240 W budget. It is EN 50155 and EN 50121-4 compliant and runs from -40 to +75°C.
Fibre Uplink2 × 1000BASE-X SFP slots alongside 8 × Gigabit M12 ports, in IP67
● Quotes answered within one working day
Available to order · request a quote for price and lead time
Delivery & assurance
- Ships from the UK
- UK & EU delivery, quoted with your price
- Pay by card or invoice
- Manufacturer's warranty
Questions about this product? Call our UK team: 023 9223 3611
Description

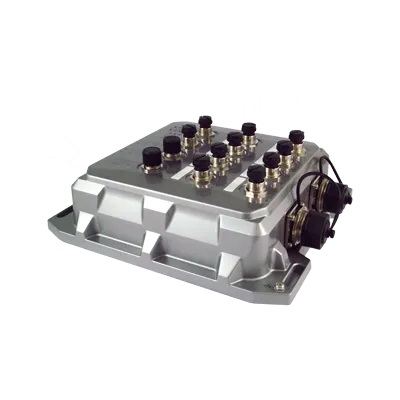

ATOP’s EMG8510 IP67-rated Railway-compliant Ethernet switch is the best solution for providing high-speed Gigabit connectivity in bayside or carriage side Railway applications. Its rugged, aluminum enclosure can effectively protect the Switch core in any environment.
The 8-M12 Connectors Gigabit ports can supply up to 30W of PoE Power (802.3af or 802.3at) to your PoE device providing an overall maximum budget of 240W. This makes EMG8510 the ideal solution for on-board or off-board surveillance by simplifying the wiring where it’s difficult, risky and expensive to introduce new elements.
Two Gigabit SFP slots provide to EMG8510 Series the capability to be connected with Fiber-Optics to the backbone without the need of Copper Ethernet repeaters and without any risk of signal degradation.
The embedded redundant-power supply input provides a reliable and failure-proof safety mechanism to minimize down-times. EMG8510 comes in either redundant Low-Voltage DC power input (12~57 VDC, 47~57 VDC for PoE models) or in redundant High Voltage DC power input (50~145 VDC). Each power module, including a Relay-output alarm, uses a S-coding M12 connector that makes EMG8510 ideal and simple for engineers setting up a Fault-Alarm System.
To prevent network intrusions, it is necessary to have a good accessing control mechanism that can identify, authenticate and authorize users. EMG8510 supports user account, password policy, and authentication interface managements functions that comply with IEC62443 standard.
Its IP67 housing protection, combined with a wide operating temperature of -40 to 70°C and wall mounting capacities make it suitable to most Railway applications in harsh environments or industrial field applications.
EMG8510 specifications
| Total Ports | 10 |
|---|---|
| M12 Ports | 8 × 10/100/1000BASE-T(X), M12 X-coded |
| Fibre (SFP) Slots | 2 × 1000BASE-X SFP |
| PoE Ports | Up to 8, IEEE 802.3af/at, up to 30 W per port |
| PoE Power Budget | Up to 240 W |
| Switching Type | Layer 2 managed, all-Gigabit |
| Redundancy Protocols | STP, RSTP, MSTP, ITU-T G.8032 ERPS, MRP (Master/Client); ERPS recovery under 20 ms |
| Time Synchronisation | IEEE 1588v2 hardware-based E2E transparent clock |
| Management | SNMPv1/v2c/v3; Modbus TCP |
| Network Features | IEEE 802.1Q VLAN, IEEE 802.1p QoS, IEEE 802.1ad LACP trunking, IGMP v1/v2/v3 snooping, DHCP option 66/67/82, GARP/GVRP/GMRP, IPv4/IPv6 |
| Security Features | User account, password policy and authentication interface management (security features based on IEC 62443); IEEE 802.1X; ACLs |
| Input Voltage | 12-57 VDC (non-PoE); 45-57 VDC for 802.3af and 51-57 VDC for 802.3at (PoE versions); 50-145 VDC (-HV version) |
| Power Redundancy | Redundant power inputs on M12 connectors |
| Relay Output | Relay-output alarm on each power input connector |
| Operating Temperature | -40 to +75°C |
| Storage Temperature | -40 to +85°C |
| Housing | Aluminium |
| Ingress Protection | IP67 |
| Mounting | Field mount (wall) |
| Dimensions | 216 × 232 × 72 mm (L × W × H) |
| Certifications | EN 50155 / EN 50121-4 (railway); UL 61010-2-201; EN 60950-1 and/or EN 62368-1 |
Specifications taken from the manufacturer datasheet.
Which version do I need?
This page covers the EMG8510 series; every code includes the 2 SFP slots. ATOP lists four: EMG8510-2SFP (8 × Gigabit M12, no PoE, 12-57 VDC), EMG8510-4PoE-2SFP (4 PoE and 4 non-PoE M12 ports), EMG8510-8PoE-2SFP (all 8 M12 ports with PoE) and EMG8510-2SFP-HV (non-PoE with a 50-145 VDC high-voltage input). PoE versions need 45-57 VDC for 802.3af or 51-57 VDC for 802.3at.
Typical applications for the EMG8510
- Carriage-side switches linking to a fibre train backbone
- On-board CCTV, powering IP cameras over M12 PoE
- Passenger information, intercom and wireless access point networks
- Trackside and bayside equipment needing fibre back to a station (EN 50121-4)
- Access switches in an ERPS ring with sub-20 ms recovery
- Outdoor field-mounted networks from -40 to +75°C
Complete the stack
Products that work with this one — connect it, power it, and get it online.
EMG8510 — frequently asked questions
How many ports does the EMG8510 have?
Ten: 8 × Gigabit Ethernet ports on M12 connectors (X-coded) and 2 × 1000BASE-X SFP slots for fibre, in an IP67 aluminium housing.
Why choose the EMG8510 over the EMG8508?
The 2 SFP slots let it connect to the backbone over fibre without copper repeaters. The M12 ports, PoE options, power inputs and housing are otherwise the same as the EMG8508.
How much PoE can it supply?
Up to 30 W per port under IEEE 802.3af/at and 240 W in total on the EMG8510-8PoE-2SFP. The 4PoE version powers 4 of the 8 M12 ports.
What power input does it need?
12-57 VDC on the non-PoE model, 45-57 VDC for 802.3af or 51-57 VDC for 802.3at on PoE models, or 50-145 VDC on the EMG8510-2SFP-HV, all with redundant inputs.
Is it suitable for railway use?
Yes. It is EN 50155 and EN 50121-4 compliant for rolling stock and trackside equipment, and also carries UL 61010-2-201.
What is the difference between the EMG8510 and the EMG8610?
The EMG8610 has the same 8 × M12 plus 2 × SFP layout and power options but is Layer 3 managed. The EMG8510 is Layer 2.
