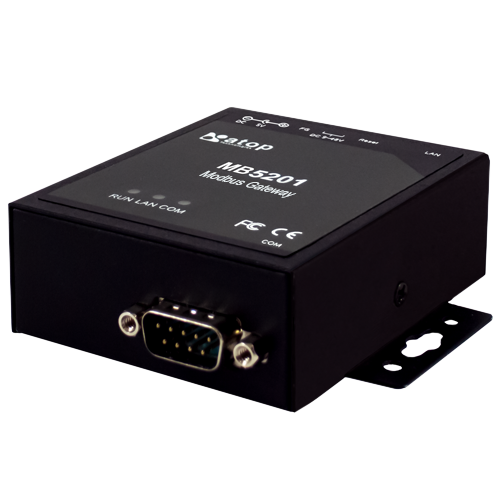

The MB5201 is a compact 1-port industrial Modbus gateway that converts between Modbus TCP, Modbus RTU and Modbus ASCII. It provides one software-selectable RS-232/RS-485/RS-422 serial port and one 10/100BASE-T(X) RJ-45 port, accepts a maximum of 16 Modbus TCP clients and 32 slave connections, draws under 1.5 W at 9 VDC, and operates from -40°C to 70°C.
Serial ports1 (software-selectable RS-232/RS-485/RS-422)
● Quotes answered within one working day
Available to order · request a quote for price and lead time
Delivery & assurance
- Ships from the UK
- UK & EU delivery, quoted with your price
- Pay by card or invoice
- Manufacturer's warranty
Questions about this product? Call our UK team: 023 9223 3611
Description
The ATOP MB5201 is an entry-level industrial Modbus gateway that connects serial field devices to Ethernet networks. It supports the four most common interfaces, RS-232, RS-422, RS-485 and Ethernet, so you can bridge almost any serial meter, PLC or RTU onto a Modbus TCP network. A configuration utility lets you select the hardware interface and slot the gateway into existing communication infrastructure quickly, keeping commissioning simple. Industrial EMC protection and wide-temperature operation make it dependable in plant rooms, cabinets and utility sites rather than the office. As the entry point to ATOP’s serial and Modbus gateway range, the MB5201 is a cost-effective way to modernise serial-only equipment. See our entry-level serial and Modbus gateways.
Manufacturer datasheet (PDF)
MB5201 specifications
| Serial ports | 1 |
|---|---|
| Serial mode | RS-232/RS-485 (2 and 4 wire)/RS-422, software selectable |
| Serial connector | 9-pin D-Sub9 (male, -DB) or 5-pin terminal block (-TB) |
| Ethernet port | 1x 10/100BASE-T(X) RJ-45 |
| Ethernet compliance | IEEE 802.3 for 10BASE-T; IEEE 802.3u for 100BASE-T(X) |
| Baud rate | 1200~230,400 bps (RS-485 4-wire allows up to 921,600 bps) |
| Data bits / stop bits | 7, 8 / 1, 2 |
| Parity | None, Odd, Even, Space, Mark |
| Flow control | None, Xon/Xoff, RTS/CTS (RS-232 only) |
| Modbus | TCP/RTU/ASCII |
| Modbus modes | Ethernet: Modbus TCP server/client (or VCOM); Serial: Modbus RTU/ASCII (master/slave) |
| Maximum clients/slaves | Modbus TCP: maximum 16 clients; maximum 32 slave connections |
| Network protocols | TCP, IPv4, UDP, DHCP Client, HTTP, HTTPS, Telnet, ARP, SNMPv1/v2c/v3 |
| Configuration | Atop Management Utility, Web UI, Telnet, CLI |
| Input voltage | 3-pin 5.08mm lockable terminal block: 9-30VDC; DC jack: 5VDC |
| Power consumption | <1.5W @9VDC |
| Power redundancy | Yes |
| Reverse polarity protection | Yes |
| Dimensions (W x D x H) | 65mm x 78mm x 28mm (without wall-mount part) |
| Weight | 185g |
| Installation | Wall-mount or DIN-Rail (optional kit) |
| Operating temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Storage temperature | -40°C ~ 85°C |
| Ambient relative humidity | 5 ~ 95% RH (non-condensing) |
| Safety | EN 60950-1 / EN62368-1 |
| MTBF | 25.29 years (MIL-HDBK-217F, 25 degrees C) |
| Warranty | 5 years |
Specifications taken from the manufacturer datasheet.
Which version do I need?
Two ordering variants differ only by serial connector: MB5201-DB (1P1MB520100001G) with a male DB9, and MB5201-TB (1P1MB520100002G) with a 5-pin terminal block. UK buyers can order the UK-plug DC jack power adapter UVE305-0510(UK-DC), part number 50500051500023G, 100~240VAC input, 1.0A @ 5 VDC output.
Typical applications for the MB5201
- Connecting a single Modbus RTU or ASCII serial device to a Modbus TCP network
- Converting between Modbus ASCII and Modbus RTU devices on mixed serial infrastructure
- Modbus ID routing to integrate an existing complex Modbus configuration into one network
- VirtualCOM redirection so existing Windows or Linux serial applications reach the device over Ethernet
- Field-mount installation inside a small panel on wall or DIN-rail
- Serial-to-Ethernet tunnelling between two remote sites
Complete the stack
Products that work with this one — connect it, power it, and get it online.
MB5201 — frequently asked questions
How many Modbus devices can one MB5201 serve?
On the Ethernet side it supports a maximum of 16 Modbus TCP clients and a maximum of 32 slave connections. On the serial side it has a single port, which can act as Modbus RTU/ASCII master or slave.
Does the single port do RS-422 and 4-wire RS-485?
Yes. The port is software-selectable between RS-232, RS-485 (2-wire and 4-wire) and RS-422. Baud rate is 1200 to 230,400 bps, and RS-485 4-wire allows up to 921,600 bps.
What power input does it take, and is it redundant?
A 3-pin 5.08 mm lockable terminal block accepting 9-30 VDC, plus a 5 VDC DC jack, and the two inputs are redundant. Consumption is under 1.5 W at 9 VDC, with reverse polarity protection.
Should I order the -DB or the -TB version?
MB5201-DB (1P1MB520100001G) terminates the serial port on a male DB9; MB5201-TB (1P1MB520100002G) uses a 5-pin terminal block. An ADP-DB9(F)-TB5 converter (59906231G) is available if you need to adapt one to the other.
How is it mounted, and how cold can it run?
Wall-mount as standard, or DIN-rail using the optional DK-25 plastic kit (30200000000022G). Operating temperature is -40°C to 70°C at 5 to 95% RH, non-condensing; it weighs 185 g.
