ATOP PG5901B Cellular Smart Grid Protocol Gateway
Request a price

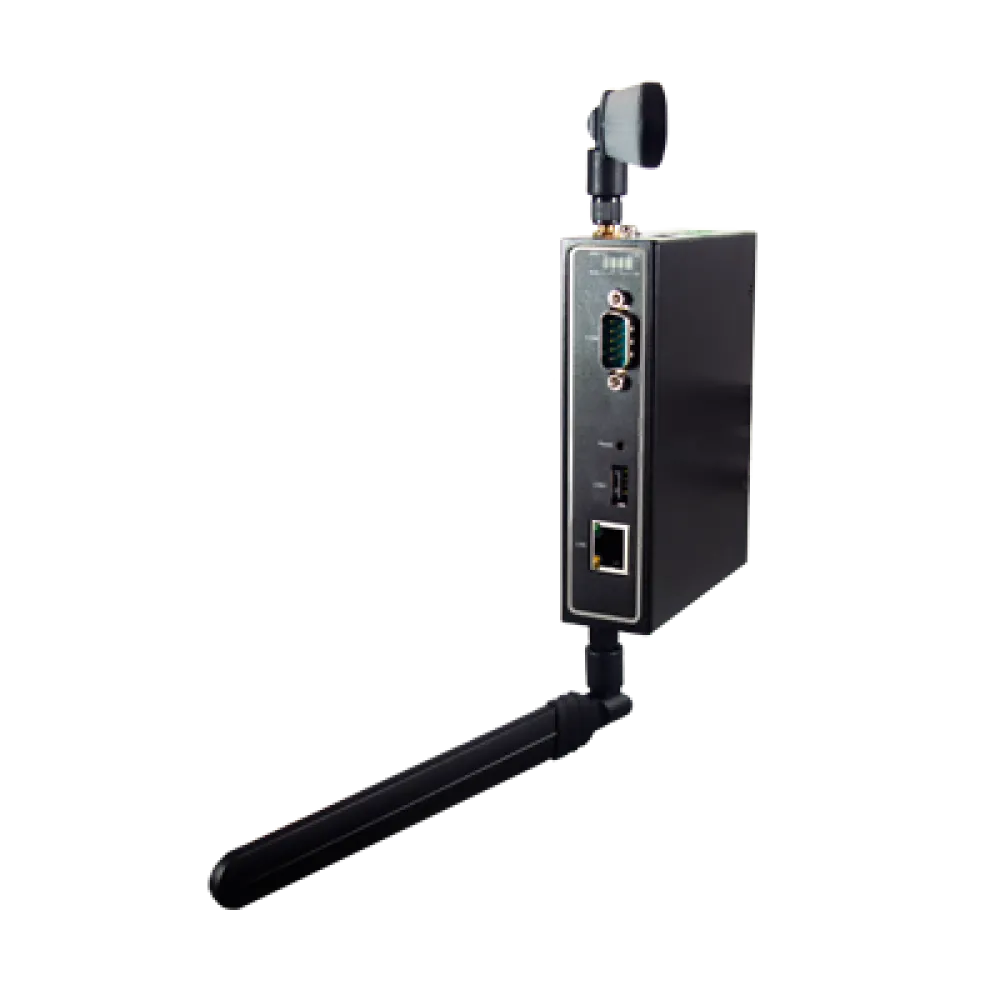

The ATOP PG5901B is a DIN-rail cellular protocol gateway with 4G LTE Cat 4, one 10/100/1000BASE-T(X) RJ45 port and an RS-232/485 serial port; its TB14 I/O version adds an RS-232 port and 2 digital inputs and outputs. It converts between Modbus, DNP3, IEC 60870-5-101/103/104 and IEC 61850 for remote grid, oil and gas and agricultural sites, on 9-48 VDC at -40°C to +70°C.
Cellular WAN4G LTE Cat 4, 1 SIM, VPN supported
● Quotes answered within one working day
Available to order · request a quote for price and lead time
Delivery & assurance
- Ships from the UK
- UK & EU delivery, quoted with your price
- Pay by card or invoice
- Manufacturer's warranty
Questions about this product? Call our UK team: 023 9223 3611
Description
Product Description
With its powerful architecture and industrial-grade hardware, PG5901B provides seamless protocol conversion for devices in industrial network operations. With its rugged construction, PG5901B is designed to perform in the most demanding of industries – including power distribution, oil and gas, manufacturing, and agriculture. As a highly reliable and fault-tolerant Industrial Protocol Gateway, also features integrated 3G/4G connectivity, making it ideal for any industry looking to implement devices at remote locations for smart grid operations. Serial reach can also be extended with the Gateway’s redundant Ethernet.
PG5901B specifications
| Cellular | 4G LTE Cat 4 |
|---|---|
| SIM Slots | 1 |
| VPN | Supported |
| RJ45 Ports | 1 × 10/100/1000BASE-T(X) |
| Serial Ports | DB9 version: 1 × RS-232/485. TB14 I/O version: 1 × RS-232/485 plus 1 × RS-232 |
| Serial Interface | DB9 or TB14 terminal block (I/O version) |
| Protocols | Modbus RTU/ASCII, Modbus TCP, DNP3 serial and TCP/IP, IEC 60870-5-101, IEC 60870-5-103 (master), IEC 60870-5-104, IEC 61850 |
| Front-End Protocols (Slave/Server) | Modbus RTU/ASCII slave, Modbus TCP server, DNP3 serial slave, DNP3 TCP/IP server, IEC 60870-5-101 slave, IEC 60870-5-104 server, IEC 61850 server |
| Back-End Protocols (Master/Client) | Modbus master (serial) or client (TCP), DNP3 master (serial) or client (TCP/IP), IEC 60870-5-101 master, IEC 60870-5-103 master, IEC 60870-5-104 client, IEC 61850 client |
| Licence Combinations | 38 of the 48 pairs in ATOP's software table; serial-to-serial pairs (e.g. MBSS-DNSM, DNSS-01SM) are not offered on this platform; optional full licence for concurrent multi-protocol conversion |
| Modbus | RTU/ASCII (serial) and TCP; up to 64 slaves/servers; up to 8000 points read and 4000 commands written; function codes 1, 2, 3, 4, 5, 6, 15, 16 and 43 (server side) |
| DNP3 | Level 2 and a subset of Level 3 (IEEE 1815-2012 Level 2); serial or TCP/UDP; server serves up to 5 TCP clients; client polls up to 16 IEDs; up to 8000 binary inputs, 2000 binary outputs, 4000 double inputs, 250 analogue inputs, 250 analogue outputs, 250 counters |
| IEC 60870-5-104 | Edition 2; server serves up to 5 clients; client polls up to 10 IEDs; up to 1000 monitor points and 500 control points per data type; server event buffer up to 20,000 events |
| IEC 61850 | Client and server, Edition 1 and Edition 2, MMS (IEC 61850-8-1); 8 logical devices per port; direct and SBO control with normal or enhanced security |
| Time Synchronisation | Protocol clock synchronisation over IEC 61850, DNP3 and IEC 60870-5-101/103/104; CP56Time2a timestamps on IEC 60870-5-104 |
| Configuration | Web interface for network settings; eNode Designer for serial settings, protocol parameters and data point mapping |
| Input Voltage | 9-48 VDC |
| Power Redundancy | 1 power input |
| Mounting | DIN-rail |
| Ingress Protection | IP30 |
| Operating Temperature | -40°C to +70°C |
| Certifications | CE (EN 61000-6-2, EN 61000-6-4), RED (2014/53/EU), FCC Part 15 Subpart B Class A, EN 60950-1; industrial EMC protection |
| Digital I/O | 2 × digital input, 2 × digital output (I/O version) |
| Dimensions (L × H × D) | 32 × 122 × 92 mm |
Specifications taken from the manufacturer datasheet.
Which version do I need?
The PG5901B hardware comes in two versions: the DB9 version with one RS-232/485 port, and the TB14 I/O version with one RS-232/485 port, one RS-232-only port and 2 DI/2 DO. The protocol function is a separate software licence from ATOP's table, written front-end then back-end: the front-end is the slave or server that your SCADA, RTU or PLC master talks to, and the back-end is the master or client the gateway uses to poll field devices. For example, PG5901B with 04ES-MBSM presents an IEC 60870-5-104 server to the control centre over LTE and polls Modbus RTU devices on the serial port as master; 50ES-DNSM presents an IEC 61850 server and polls a serial DNP3 outstation as master. 38 of the table's 48 licences are offered on this platform; serial-to-serial pairs such as MBSS-DNSM are not listed, including on the I/O version. An optional full licence runs one or more protocols concurrently on both sides instead of a single pair.
Typical applications for the PG5901B
- Remote secondary substations reporting to an IEC 60870-5-104 or DNP3 control centre over LTE
- Oil and gas sites with DNP3 serial RTUs and no fixed line
- Agricultural and water pumping sites with Modbus RTU controllers
- Reading site status contacts and driving outputs with the TB14 I/O version
- Mapping a serial outstation into an IEC 61850 system over cellular (50ES-DNSM)
- Power distribution sites needing VPN-protected cellular backhaul
Complete the stack
Products that work with this one — connect it, power it, and get it online.
PG5901B — frequently asked questions
What cellular connection does the PG5901B have?
4G LTE Cat 4 with one SIM card and VPN support, alongside one 10/100/1000BASE-T(X) RJ45 port for the local network.
What is the difference between the DB9 version and the TB14 I/O version?
The DB9 version has one RS-232/485 serial port. The TB14 I/O version has one RS-232/485 port, one RS-232-only port and 2 digital inputs plus 2 digital outputs on a 14-pin terminal block.
Which protocols can it convert?
Modbus RTU/ASCII and TCP, DNP3 serial and TCP/IP, IEC 60870-5-101, IEC 60870-5-103 (master), IEC 60870-5-104 and IEC 61850. 38 front-end/back-end licences are offered; serial-to-serial pairs are not.
What is the difference between the PG5901B and the PG5201B?
The PG5901B uses LTE Cat 4, a Gigabit RJ45 port and ATOP's higher-performance PG59XX processor, rated -40°C to +70°C. The PG5201B uses LTE Cat 1 with up to 2 SIMs, 2 × 10/100 RJ45 ports, a standard CPU and a relay output, rated -30°C to +75°C.
What is the difference between the PG5901B and the PG5901?
The PG5901 has no cellular interface; it has 2 × 10/100 RJ45 ports with RSTP, a full-function RS-232/422/485 port, optional 802.3af PoE power and a -40°C to +85°C rating.
What power supply, temperature and approvals apply?
9-48 VDC on one input, -40°C to +70°C operation, DIN-rail mounting in an IP30 housing of 32 × 122 × 92 mm. ATOP's guide lists CE (EN 61000-6-2/-6-4), RED 2014/53/EU, FCC Part 15 Subpart B Class A and EN 60950-1.
