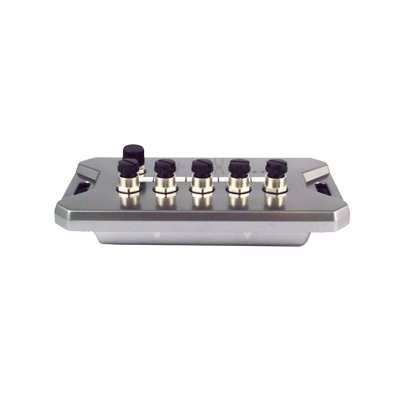

ATOP EMG8305 Industrial Unmanaged Ethernet Switch
Request a price
The EMG8305 is an ATOP unmanaged IP67 Gigabit railway switch with 5 × 10/100/1000BASE-T(X) M12 ports in A- or X-coding. It draws a maximum 5 W from a redundant 12-48 VDC input and operates from -40°C to 75°C. Use it for rolling-stock and trackside installations where no additional protective housing is available.
Ethernet ports5 × 10/100/1000BASE-T(X), M12 connector (A or X coding), IP67
● Quotes answered within one working day
Available to order · request a quote for price and lead time
Delivery & assurance
- Ships from the UK
- UK & EU delivery, quoted with your price
- Pay by card or invoice
- Manufacturer's warranty
Questions about this product? Call our UK team: 023 9223 3611
Description
EMG8305 is a rugged 5 port IP67-rated Unmanaged Ethernet switch with five 10/100/1000BASE-T(X) M12 ports, suitable and certified for railway applications. Its modern, slim and flat design makes the device installation possible on virtually any surface without requiring large areas.
It provides resistance towards dust, dirt, liquid, and vibration making it suitable for the toughest industrial applications even without the need of additional housing. Its operating temperature ranges from -40°C to 75°C.
EMG8305 Unmanaged Switch is compliant with the essential sections of EN 50155, covering operating temperature, power input voltage, EMC and vibration. Its UL61010-2-101 certification confirms the device’s reliability, safety and performance.
EMG8305 specifications
| Ethernet ports | 5 × 10/100/1000BASE-T(X), M12 connector (A or X coding) |
|---|---|
| Management | Unmanaged |
| Transmission rate | 10/100/1000 Mbps |
| Processing scheme | Store-and-Forward |
| MAC address table | 8096 |
| Packet buffer size | 1 Mbits |
| Jumbo frame | 10k Bytes |
| Flow control | Back pressure and pause frame based flow control (IEEE 802.3x) |
| Input voltage | 12-48 VDC (redundant power input) |
| Input current | 0.42 A @ 12 V |
| Max power consumption | 5 W |
| Power connector | 5-pin A-code male M12, reverse polarity protection |
| Housing | IP67 protection according to EN 60529, aluminium housing |
| Dimensions (W x H x D) | 105.7 × 196 × 48.3 mm |
| Weight | 650 g |
| Installation | Wall-mount (optional DIN-Rail kit) |
| Operating temperature | -40°C to 75°C (-40°F to 167°F) |
| Storage temperature | -40°C to 85°C (-40°F to 185°F) |
| Ambient relative humidity | 5% to 95%, 55°C (non-condensing) |
| Rail traffic approvals | EN 50155; EN 50121-4 |
| Safety | UL/IEC/EN 61010-1, UL/IEC (CB) 61010-2-201 |
| MTBF / warranty | MTBF 32.70 years (MIL-HDBK-217F); warranty 5 years |
Specifications taken from the manufacturer datasheet.
Which version do I need?
Two part numbers, differing only by M12 coding: EMG8305-M12-A (1P1EMG8305A001G, A coding) and EMG8305-M12-X (1P1EMG8305X001G, X coding). Both provide 5 M12 ports. Order the coding that matches your installed M12 patch leads, as the two are not interchangeable.
Typical applications for the EMG8305
- Rolling stock and carriage-side railway networks
- Trackside and wayside equipment cabinets
- Installations with no protective enclosure available
- Washdown, dusty or high-vibration industrial areas
- Profinet networks requiring 802.1q packet prioritisation
- Surface-mounted installs where space is limited
Complete the stack
Products that work with this one — connect it, power it, and get it online.
EMG8305 — frequently asked questions
Is the EMG8305 managed or unmanaged?
Unmanaged. The datasheet describes it as a rugged 5-port IP67-rated unmanaged Ethernet switch using store-and-forward processing with an 8096-entry MAC address table. It does prioritise Profinet packets according to 802.1q, but there is no web interface or configuration.
Do I need an enclosure for it?
No. The housing is IP67 rated according to EN 60529 in an aluminium case, and the datasheet states it resists dust, dirt, liquid and vibration, making it suitable for the toughest industrial applications even without the need of additional housing.
What is the difference between the A-coding and X-coding versions?
Only the M12 connector coding on the five Ethernet ports: EMG8305-M12-A uses A coding and EMG8305-M12-X uses X coding. Choose the version matching your existing M12 cabling. The power connector is a 5-pin A-code male M12 on both.
What power does it need and how much does it draw?
A redundant 12-48 VDC input via 5-pin A-code male M12, drawing 0.42 A at 12 V for a maximum 5 W. Reverse polarity protection is fitted.
Is it approved for railway use?
The datasheet states it is compliant with the essential sections of EN 50155, covering operating temperature, power input voltage, EMC and vibration, and is certified to EN 50121-4 and UL 61010-2-201.
