ATOP EH2308-PR Industrial Unmanaged Ethernet Switch
Request a price

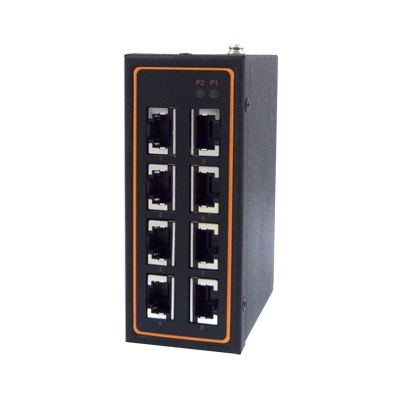

The EH2308-PR is an ATOP industrial Ethernet switch with 8 ports of 10/100BaseT(X) in a metal housing measuring 45 x 110 x 90 mm. It operates -10~70°C on a 9~48 V redundant supply and is rated IP30 for DIN-rail cabinet mounting. No PoE ports and no Gigabit ports are provided.
Total number of ports8 ports, all 10/100BaseT(X) copper
● Quotes answered within one working day
Available to order · request a quote for price and lead time
Delivery & assurance
- Ships from the UK
- UK & EU delivery, quoted with your price
- Pay by card or invoice
- Manufacturer's warranty
Questions about this product? Call our UK team: 023 9223 3611
Description
EH2308-PR are with 8 RJ-45 ports for your industrial applications. They are designed to work in the industrial environment, such as in hazardous locations and compliant with CE, FCC, UL, and RoHSII standards.
EH2308-PR protect themselves from receiving over broadcast packets. During normal use, broadcast packets will be forwarded to all ports, except the source port. However, it will discard broadcast or multicast packets if the number of those packets exceeds a threshold in a preset period of time. When the preset period expires (about 800ms), it will then resume receiving broadcast or multicast packets until the threshold is reached again.
EH2308-PR provides two redundant power inputs that can be connected simultaneously to wide-range DC power sources. If one of the power inputs failure, the another live source acts as a backup to provide the EH2308-PR power input automatically.
EH2308-PR specifications
| Total number of ports | 8 |
|---|---|
| Fast Ethernet 10/100BaseT(X) | 8 |
| Gigabit 10/100/1000BaseT(X) | None |
| PoE/PoE+ ports | None |
| Power input | 9~48 V |
| Power redundancy | Supported |
| Housing | Metal |
| Installation | DIN-Rail |
| Ingress protection | IP30 |
| Dimensions (L x W x H) | 45 x 110 x 90 mm |
| Operating temperature | -10~70° C |
| Storage temperature | -40~85° C |
| Compliance | UL/EN/IEC(CB) 60950-1 and/or 62368-1; EN60950-1 and/or EN62368-1 |
Specifications taken from the manufacturer datasheet.
Which version do I need?
EH2304-PR and EH2308-PR are the 4-port and 8-port members of the same -PR line and share one ATOP datasheet. They differ in port count and in size: the EH2304-PR is a slim 22.5 x 110 x 78 mm, the EH2308-PR is 45 x 110 x 90 mm. Do not confuse the EH2308-PR with the plain EH2308, which is a different 45 x 90 x 78 mm aluminium model.
Complete the stack
Products that work with this one — connect it, power it, and get it online.
EH2308-PR — frequently asked questions
How many ports does the EH2308-PR have?
Eight 10/100BaseT(X) copper ports. No Gigabit ports and no fibre ports are listed on this model.
Does it support PoE?
No. No PoE or PoE+ ports are listed on the EH2308-PR.
How does it differ from the standard EH2308?
Both give eight 10/100 ports and the same -10~70°C range, but the EH2308-PR is a larger metal unit at 45 x 110 x 90 mm against 45 x 90 x 78 mm for the aluminium EH2308.
What power supply does it need?
A 9~48 V supply, with redundant power input supported so a second feed can be wired in.
What is the operating temperature range?
-10~70°C operating and -40~85°C storage. It is rated IP30, so it belongs inside a cabinet or enclosure.
