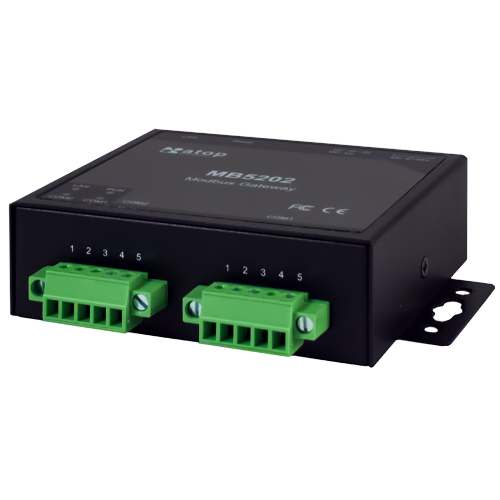

ATOP MB5202 Serial to Ethernet Modbus Gateway
Request a price
The MB5202 is a compact 2-port industrial Modbus TCP/RTU/ASCII gateway. Both serial ports are software-selectable RS-232/RS-485/RS-422, and the Ethernet side is either one 10/100BASE-T(X) RJ-45 port or one 100BASE-FX SFP slot. The Modbus TCP server accepts 4 connections. Power is redundant 9-30 VDC terminal block plus 5 VDC DC jack, and operating temperature is -20°C to +70°C.
Serial ports2 (both software-selectable RS-232/RS-485/RS-422)
