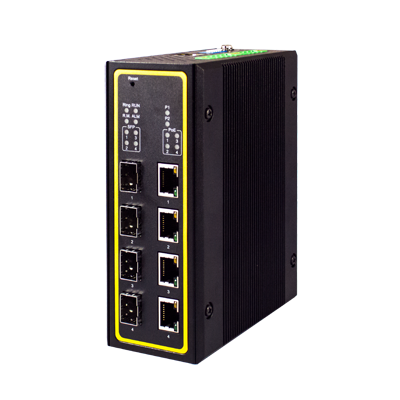

ATOP EHG7608 Industrial Managed Ethernet Switch
Request a price
The ATOP EHG7608 is an 8-port Layer 3 managed Gigabit switch with up to 8 × 10/100/1000 RJ45 ports and up to 4 × 1000BASE-X SFP slots, delivering up to 240 W of PoE on the 8-PoE version. It routes IPv4 (static, RIP, OSPF), is NEMA TS2 and EN 50155 certified, and operates from -20 to +70°C on dual redundant inputs.
PoE Power BudgetUp to 240 W across 8 IEEE 802.3af/at PoE ports (EHG7608-8PoE)
● Quotes answered within one working day
Available to order · request a quote for price and lead time
Delivery & assurance
- Ships from the UK
- UK & EU delivery, quoted with your price
- Pay by card or invoice
- Manufacturer's warranty
Questions about this product? Call our UK team: 023 9223 3611
Description
The EHG7608 Series is an Industrial Grade Layer-3 Managed Gigabit Ethernet PoE Switch. Designed to provide a highly reliable, fault-tolerant, extremely fast network connection in a harsh environment, EHG7608 Series equips two terminal blocks to provide dual redundant power inputs with Reverse Polarity Protection and allows field engineers to build up a stand-alone fault alarm system. EHG76XX family is UL, CE, FCC and NEMA TS-2 certified, allowing the use in Traffic Control Applications.
Within its compact DIN-Rail housing design, the EHG7608 series allows you to choose between different port combinations: 10/100/1000 BASE-T(X) RJ45 port, 1000 BASE-X SFP port and IEEE 802.3af/at complaint PoE RJ45. EHG7608 provide, in its 8-PoE-Port Version, up to 240W power budget. Layer-3 Features support IPv4, RIP v1/v2, OSPF v1/v2 and many more.
This is the right choice if you want to set up a Reliable network environment with its intelligent features and keep equipment connected all the time, even in case of temporary network breakdowns through RSTP, ERPS Rings and MRP (Manager/ Client) redundancy. And that’s not all. Designed specifically for Automation, it is Profinet CC-B, MAC-based Black List/White List, IEEE 802.1x, RADIUS, TACACS+, etc., and keep your network safe.
Automation and IoT ready: Conforming with Profinet CC-B v2.33 makes EHG7608 the perfect candidate for being the backbone of your Industrial automation.
EN50155 and EN50121-4 Certified: Having undergone environmental testing to ensure reliable performance under a variety of power supply conditions, such as voltage variations, power interruptions, and supply changeovers, this switch Series is fully EN50155-certified for today’s demanding railway applications, as well as complying with essential sections of EN50121-4 for ground equipment.
EHG7608 specifications
| Total Ports | 8 |
|---|---|
| RJ45 Ports | Up to 8 × 10/100/1000BASE-T(X) |
| Fibre (SFP) Slots | Up to 4 × 1000BASE-X SFP |
| PoE Ports | Up to 8, IEEE 802.3af/at |
| PoE Power Budget | Up to 240 W (8-PoE-port version) |
| Switching Type | Layer 3 managed, all-Gigabit |
| Routing | IPv4 unicast static routing, RIP v1/v2, OSPFv2, BGP, VRRP, DVMRP, PIM-DM, PIM-SM, PIM-SSM, DHCP server |
| Redundancy Protocols | STP, RSTP, MSTP, ITU-T G.8032 ERPS, MRP (Manager/Client) |
| Time Synchronisation | IEEE 1588v2 hardware-based E2E transparent clock |
| Management | SNMPv1/v2c/v3; Modbus TCP |
| Network Features | IEEE 802.1Q VLAN, IEEE 802.1p QoS, IEEE 802.1ad LACP trunking, IGMP v1/v2/v3 snooping, DHCP option 66/67/82, GARP/GVRP/GMRP, IPv4/IPv6 |
| Security Features | MAC-based black list/white list, IEEE 802.1X, RADIUS, TACACS+, ACLs; security features based on IEC 62443 |
| Input Voltage | 9-57 VDC; 45 VDC or higher for PoE output |
| Power Redundancy | Dual redundant inputs on two terminal blocks, reverse polarity protection |
| Relay Output | Yes, for a stand-alone fault alarm |
| Operating Temperature | -20 to +70°C |
| Storage Temperature | -40 to +85°C |
| Housing | Metal |
| Ingress Protection | IP30 |
| Mounting | DIN rail |
| Dimensions | 54 × 113 × 145 mm (L × W × H) |
| Certifications | NEMA TS2; EN 50155 certified and compliant with the essential sections of EN 50121-4; UL/EN/IEC (CB) 60950-1 and/or 62368-1; CE; FCC |
Specifications taken from the manufacturer datasheet.
Which version do I need?
This page covers the EHG7608 series. ATOP lists four codes: EHG7608 (8 × Gigabit RJ45), EHG7608-4SFP (4 × RJ45 plus 4 × Gigabit SFP), EHG7608-4PoE-4SFP (4 × PoE RJ45 plus 4 × Gigabit SFP) and EHG7608-8PoE (8 × Gigabit PoE RJ45, the 240 W version). All share Layer 3 routing, the -20 to +70°C rating and the rail and traffic approvals; choose on how many PoE ports and fibre links you need.
Typical applications for the EHG7608
- Routing between camera, control and corporate subnets in one DIN-rail switch
- Powering up to 8 IP cameras or access points from a traffic or rail cabinet
- Traffic control cabinets (NEMA TS2 certified)
- Railway rolling stock and trackside ground equipment (EN 50155, EN 50121-4)
- Fibre ring nodes using the 4SFP versions with ERPS or MRP
- Substation or plant edge networks needing IEEE 1588v2 transparent clock timing
Complete the stack
Products that work with this one — connect it, power it, and get it online.
EHG7608 — frequently asked questions
How many ports does the EHG7608 have?
Eight: 8 × Gigabit RJ45, 8 × Gigabit PoE RJ45, or 4 RJ45 (PoE or non-PoE) plus 4 × 1000BASE-X SFP, depending on the version.
What is the PoE budget?
Up to 240 W on the 8-PoE-port version, IEEE 802.3af/at. PoE output needs an input of 45 VDC or higher.
What Layer 3 functions does it have?
IPv4 static routing, RIP v1/v2 and OSPFv2, with ATOP's Layer 3 range also listing BGP, VRRP, DVMRP, PIM-DM/SM/SSM and a DHCP server.
What is the difference between the EHG7608 and the EHG7508?
Both are 8-port Gigabit DIN-rail switches with up to 8 PoE ports and a -20 to +70°C rating. The EHG7608 adds Layer 3 routing; the EHG7508 is Layer 2 and is the one ATOP lists as Profinet CC-B certified.
Is it certified for rail and traffic use?
Yes. ATOP states it is EN 50155 certified and complies with the essential sections of EN 50121-4, and it is NEMA TS2 certified for traffic control.
Which redundancy protocols does it support?
STP, RSTP, MSTP, ITU-T G.8032 ERPS and MRP (Manager/Client).
