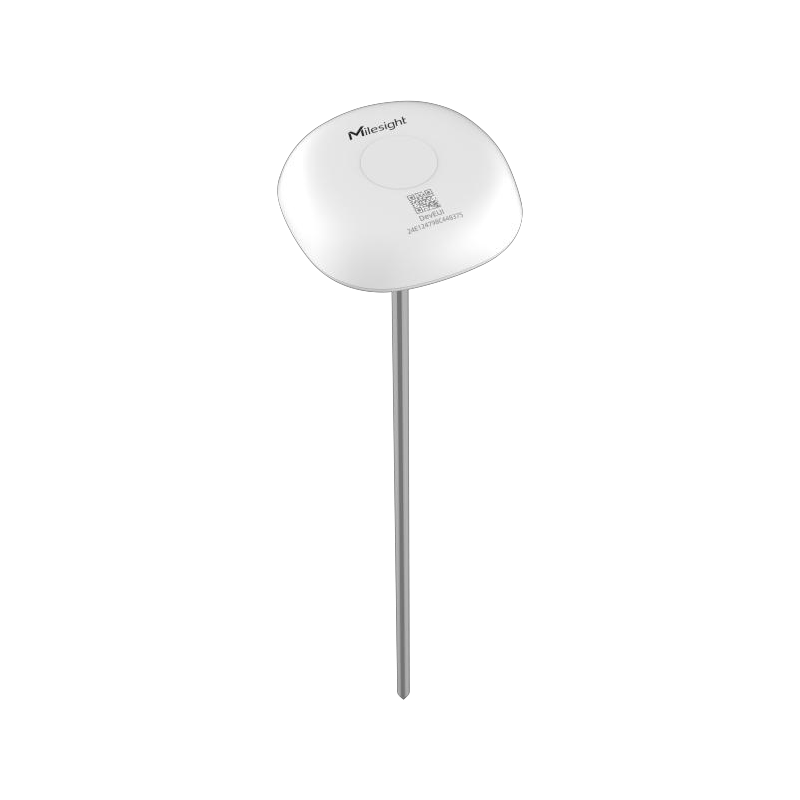

Milesight TS101 Insertion Temperature Sensor
Authorised Milesight UK DistributorPrice range: £74.82 through £143.65 ex VAT (£89.78 – £172.38 inc. VAT)
The Milesight TS101 is a LoRaWAN insertion temperature sensor with a 400 mm food-grade 316 stainless steel probe, used to measure temperature inside tobacco or grain stacks, haystacks and compost piles. Its detecting range is -30°C to +70°C with typical ±0.5°C accuracy and 0.1°C resolution. It is IP67 and IK10 rated and runs on one 4,000 mAh replaceable battery for up to 10 years.
Detecting Range-30°C ~ +70°C (probe Ф 7 × 400 mm)
In stock · typically dispatched within 14 working days from the UK
● Quotes answered within one working day · UK support
Delivery & assurance
- Ships from the UK
- £14.25 flat UK delivery
- Secure checkout — card, Klarna, invoice
- Manufacturer's warranty
Questions about this product? Call our UK team: 023 9223 3611
Description
TS101 is an all-in-one insertion temperature sensor with an
integrated transmitter. It is equipped with an advanced measuring unit that
provides a wide temperature measuring range. With IP67 and IK10 ratings, the exquisite TS101 sensor is suitable for
monitoring the inner temperature of Tobacco or grain stacks. It can also be
applied in other warehousing scenarios which require inner temperature
detection with high efficiency. TS101 is compatible with Milesight LoRaWAN® gateway and mainstream
LoRaWAN® network servers. With this low power consumption technology, TS101 can work for up to 10 years with a 4,000mAh battery. Combining with
Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can
manage all sensor data remotely
Additional information
| Weight | 0.2 kg |
|---|
TS101 specifications
| Detecting Range | -30°C ~ +70°C |
|---|---|
| Accuracy | Typ. ± 0.5°C |
| Resolution | 0.1°C |
| Sensor Probe | Ф 7 × 400 mm, 316 stainless steel (food-grade, phosphine corrosion resistant) |
| Protocol | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Antenna | Internal Antenna |
| Power Supply | 1 × 4000 mAh ER18505 Li-SOCl2 replaceable battery |
| Battery Life (1 h report interval, 25°C) | Up to 10 years (SF7, EU868 & US915); around 4.8 years (SF10, EU868) |
| Operating Temperature | -30°C ~ +70°C |
| Relative Humidity | 0 ~ 95% (Non-condensing) |
| Ingress Protection | IP67 |
| Impact Protection | IK10 (Transceiver) |
| Transceiver Dimensions | Ф 92 × 92 × 26 mm (Ф 3.62 × 3.62 × 1.02 in) |
| Housing & Colour | Transceiver: ABS+PC (food-grade, phosphine corrosion resistant), White |
| Installation | Insert Installation |
| Configuration | NFC configuration via mobile app |
| Advanced Features | Data storage (1200 entries), data retransmission, data retrievability, abrupt temperature change alarm |
| Approvals | CE, FCC; RoHS |
Specifications taken from the manufacturer datasheet.
Which version do I need?
The -868M part number is the 868 MHz build. The datasheet lists EU868 among the supported frequency plans and quotes 16 dBm Tx power at 868 MHz. UK LoRaWAN networks use EU868, so -868M is the correct variant for the UK; -915M builds are for US915/AU915 regions.
Typical applications for the TS101
- Tobacco warehouse stack temperature monitoring
- Grain stack inner-temperature monitoring
- Farm haystack monitoring
- Compost pile temperature monitoring
- General warehousing where inner-temperature detection is required
Buying guides for this product
Frequency band
Supplied on EU868, the LoRaWAN band used in the UK and across Europe. That is the default and you do not need to ask for it — the -868M in the part number is the EU868 build.
The same TS101 unit also covers IN865 and RU864. Those bands share the 863–870 MHz radio with EU868, so one device can be set to any of them in its own configuration — no different part number needed.
CN470, US915, AU915, KR920 and AS923 are a different radio and therefore a different build. Milesight makes them and we can order them: tell us where the devices are being deployed and we will confirm the part number, price and lead time.
Not sure which band applies where? The Things Network publishes the LoRaWAN frequency plan for every country.
Complete the stack
Products that work with this one — connect it, power it, and get it online.
Which gateway do I need? Compare the Milesight range, from £98.76 →
-
Milesight UG63 Mini LoRaWAN® Gateway
UG63 Price range: £98.76 through £131.68 ex VAT (£118.51 – £158.02 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page -

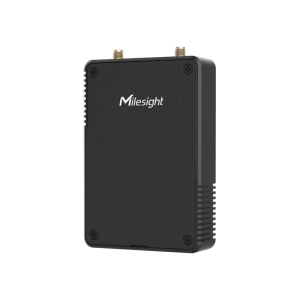

Milesight UG56 Industrial LoRaWAN Gateway
UG56 Price range: £173.58 through £213.98 ex VAT (£208.30 – £256.78 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page -

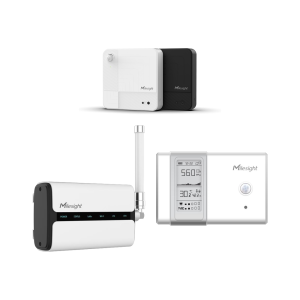

Milesight Smart Building Occupancy Kit — Occupancy + Air Quality + Gateway
KIT-OCCUPANCY £531.21 ex VAT (£637.45 inc. VAT) -
Milesight SG50 Ultra Low Power Solar LoRaWAN® Gateway
SG50-868M Price range: £683.83 through £733.21 ex VAT (£820.60 – £879.85 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page
TS101 — frequently asked questions
What temperature range does the TS101 measure?
-30°C to +70°C, with typical accuracy of ±0.5°C and 0.1°C resolution.
How long is the probe and what is it made of?
The sensor probe is Ф 7 × 400 mm in 316 food-grade stainless steel, phosphine corrosion resistant, so it can be inserted into a stack or pile.
What battery does it use and how long does it last?
One replaceable 4,000 mAh ER18505 Li-SOCl2 cell. At a one-hour report interval and 25°C, up to 10 years at SF7 on EU868/US915, or around 4.8 years at SF10 on EU868.
Does it need a gateway?
Yes. It is a LoRaWAN Class A (OTAA/ABP) device and works with standard LoRaWAN gateways and network servers, including Milesight gateways and the Milesight Development Platform.
Is it rated for harsh or wet environments?
It is IP67 rated with IK10 impact protection on the transceiver, operates from -30°C to +70°C and tolerates 0-95% relative humidity, non-condensing.
How much does the Milesight TS101 Insertion Temperature Sensor cost in the UK?
The Milesight TS101 Insertion Temperature Sensor starts at £74.82 ex VAT from Indiott, with the exact figure depending on the variant you choose. Indiott is a UK distributor and invoices with VAT (PSI Technologies Ltd, VAT GB 730 2340 83). UK delivery is a flat £14.25 per order ex VAT, whatever the weight.
What is the lead time and delivery cost for the Milesight TS101 Insertion Temperature Sensor?
The Milesight TS101 Insertion Temperature Sensor is in stock and typically dispatched within 14 working days from the UK. UK delivery is a flat £14.25 per order ex VAT, whatever the weight or how many items you order. We ship to GB and the EU and provide a VAT invoice with every order.
