Milesight EM300-TH Temperature and Humidity Sensor
Authorised Milesight UK Distributor£38.90 ex VAT (£46.68 inc. VAT)
EM300-TH is a LoRaWAN temperature and humidity sensor for indoor and outdoor use. It measures -30°C to +70°C — the decisive spec — at a typical accuracy of ±0.3°C from 0°C to 70°C, plus 0% to 100% RH at ±3%. The IP67 UV-resistant housing and a 4000 mAh battery rated at over 10 years suit unattended sites.
Temperature measuring range-30°C to +70°C
Not sure this is the right model?
Need the gateway too? Build and price the whole kit →
In stock · typically dispatched within 14 working days from the UK
Kits that use this part: Server room monitoring kit · Damp and mould monitoring kit · Warehouse temperature and humidity kit
● Quotes answered within one working day · UK support
Delivery & assurance
- Ships from the UK
- £14.25 flat UK delivery
- Secure checkout — card, Klarna, invoice
- Manufacturer's warranty
Questions about this product? Call our UK team: 023 9223 3611
Description

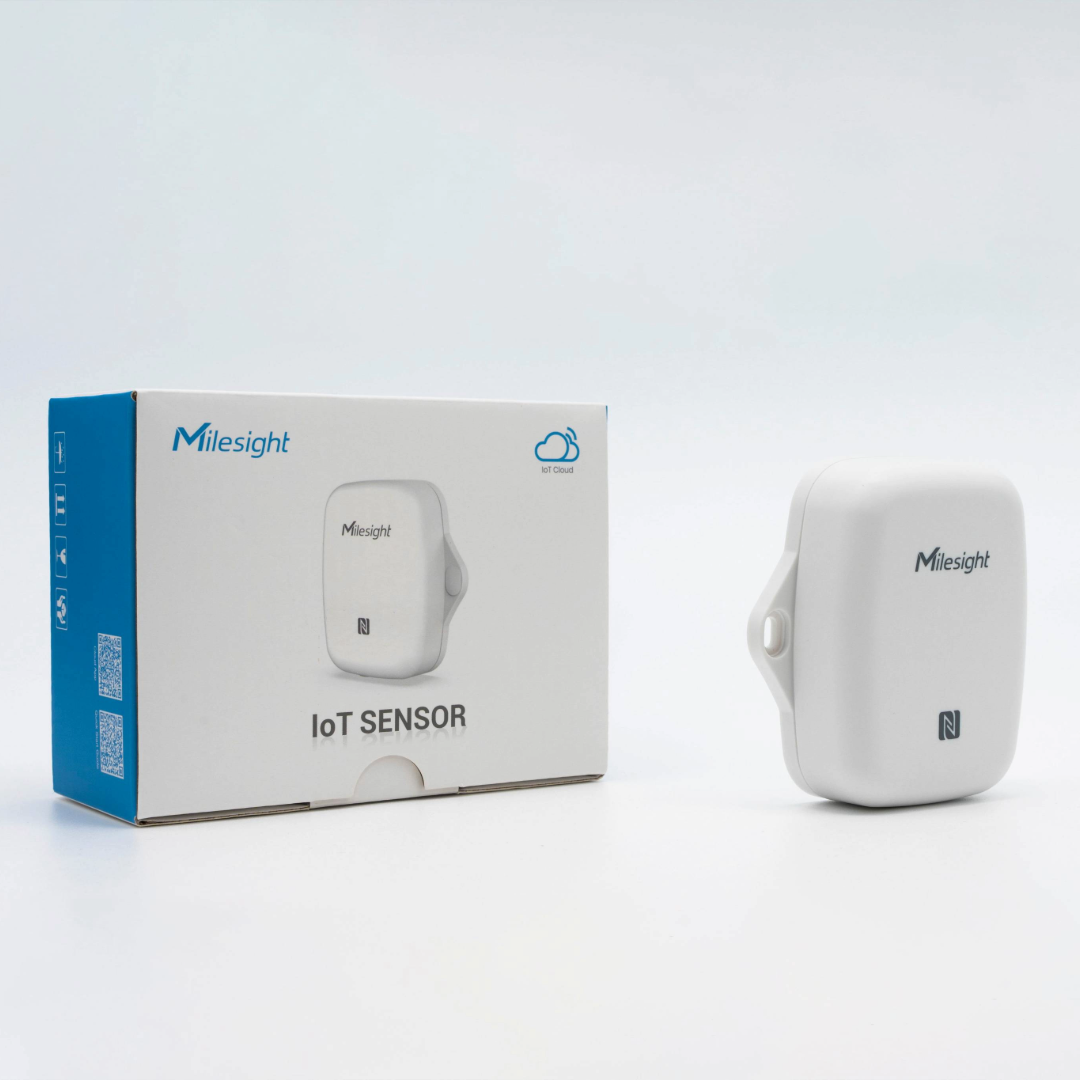

EM300-TH is a compact environment monitoring sensor for measurement of temperature and humidity and transmitting data using LoRaWAN® technology.
With this low power consumption technology, EM300-TH can work up to 5 years with 4000 mAh battery.
Combining with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually. EM300-TH is widely used for both indoor and outdoor applications such as offices, hospitals, factories, greenhouses, etc.
Temperature: -30°C ~ 70°C Humidity: 0% ~ 100% RH
Additional information
| Weight | 0.096 kg |
|---|
EM300-TH-868M specifications
| Technology | LoRaWAN®, Milesight D2D |
|---|---|
| Antenna | Internal antenna |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx power | 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Temperature range | -30°C to +70°C |
| Temperature accuracy | Typ.: ±0.6°C (-30°C ~ 0°C), ±0.3°C (0°C ~ 70°C) |
| Temperature resolution | 0.1°C |
| Humidity range | 0% to 100% RH |
| Humidity accuracy | Typ.: ±3% (10% ~ 90% RH @25°C), ±5% (0% ~ 10% RH and 90% ~ 100% RH @25°C) |
| Humidity resolution | 0.5% RH |
| Advanced features | Threshold alarm, Milesight D2D controller, data storage (2,800 entries), data retransmission, data retrievability |
| Configuration | NFC via mobile app, downlink |
| Power supply | 1 × 4000 mAh ER18505 Li-SOCl2 battery (8000 mAh version optional) |
| Battery life | Over 10 years (SF7, EU868 & US915); around 5.8 years (SF10, EU868) at 10 min interval, 25°C |
| Operating temperature | -30°C to +70°C |
| Relative humidity | 0% to 100% (non-condensing) |
| Ingress protection | IP67 |
| Housing & colour | ABS + PC (flame retardant), white |
| Weight | 95.6 g (with 1 battery) |
| Dimensions | 88.5 × 85.3 × 27 mm (3.48 × 3.36 × 1.06 in) |
| Installation | Wall screw mounting, 3M tape mounting, cable-tie mounting |
| Approvals | CE, FCC, ISED, RCM, Telec, ICASA, EN12830; RoHS |
Specifications taken from the manufacturer datasheet.
Which version do I need?
-868M is the EU868 band, which is the version a UK network needs. The datasheet also lists an optional 8000 mAh battery version in place of the standard 4000 mAh cell.
Typical applications for the EM300-TH-868M
- Office and building environment monitoring
- Hospital environment monitoring
- Factory and plant monitoring
- Greenhouse monitoring
- Outdoor environment monitoring in harsh conditions
- Cold-chain storage monitoring (EN12830 certified)
Buying guides for this product
Frequency band
Supplied on EU868, the LoRaWAN band used in the UK and across Europe. That is the default and you do not need to ask for it — the -868M in the part number is the EU868 build.
The same EM300-TH-868M unit also covers IN865 and RU864. Those bands share the 863–870 MHz radio with EU868, so one device can be set to any of them in its own configuration — no different part number needed.
CN470, US915, AU915, KR920 and AS923 are a different radio and therefore a different build. Milesight makes them and we can order them: tell us where the devices are being deployed and we will confirm the part number, price and lead time.
Not sure which band applies where? The Things Network publishes the LoRaWAN frequency plan for every country.
Complete the stack
Products that work with this one — connect it, power it, and get it online.
Which gateway do I need? Compare the Milesight range, from £98.76 →
-
Milesight UG63 Mini LoRaWAN® Gateway
UG63 Price range: £98.76 through £131.68 ex VAT (£118.51 – £158.02 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page -
Milesight UG56 Industrial LoRaWAN Gateway
UG56 Price range: £173.58 through £213.98 ex VAT (£208.30 – £256.78 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page -
Milesight Smart Building Occupancy Kit — Occupancy + Air Quality + Gateway
KIT-OCCUPANCY £531.21 ex VAT (£637.45 inc. VAT) -
Milesight SG50 Ultra Low Power Solar LoRaWAN® Gateway
SG50-868M Price range: £683.83 through £733.21 ex VAT (£820.60 – £879.85 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page
EM300-TH-868M — frequently asked questions
What temperature and humidity range does it cover?
Temperature -30°C to +70°C at a typical ±0.3°C between 0°C and 70°C and ±0.6°C between -30°C and 0°C, with 0.1°C resolution. Humidity 0% to 100% RH at a typical ±3% between 10% and 90% RH, with 0.5% RH resolution.
What battery does it use and how long does it last?
One 4000 mAh ER18505 Li-SOCl2 battery, with an 8000 mAh version optional. The datasheet quotes over 10 years at SF7 on EU868 and around 5.8 years at SF10 on EU868, at a 10-minute interval and 25°C.
Can it be installed outdoors?
Yes. The enclosure is IP67, UV-resistant and waterproof, rated -30°C to +70°C and 0-100% relative humidity, non-condensing.
Does it need a gateway?
It is compliant with standard LoRaWAN gateways and network servers in OTAA/ABP Class A. It also acts as a Milesight D2D controller, so it can trigger another Milesight device directly without a gateway.
What happens to readings if the network drops out?
It stores 2,800 entries locally and supports data retransmission and data retrievability, so readings taken during an outage are not lost.
How much does the Milesight EM300-TH Temperature and Humidity Sensor cost in the UK?
The Milesight EM300-TH Temperature and Humidity Sensor is £38.90 ex VAT from Indiott, a UK distributor. The price is published rather than quote-only, and we invoice with VAT (PSI Technologies Ltd, VAT GB 730 2340 83). UK delivery is a flat £14.25 per order ex VAT, whatever the weight.
What is the lead time and delivery cost for the Milesight EM300-TH Temperature and Humidity Sensor?
The Milesight EM300-TH Temperature and Humidity Sensor is in stock and typically dispatched within 14 working days from the UK. UK delivery is a flat £14.25 per order ex VAT, whatever the weight or how many items you order. We ship to GB and the EU and provide a VAT invoice with every order.
