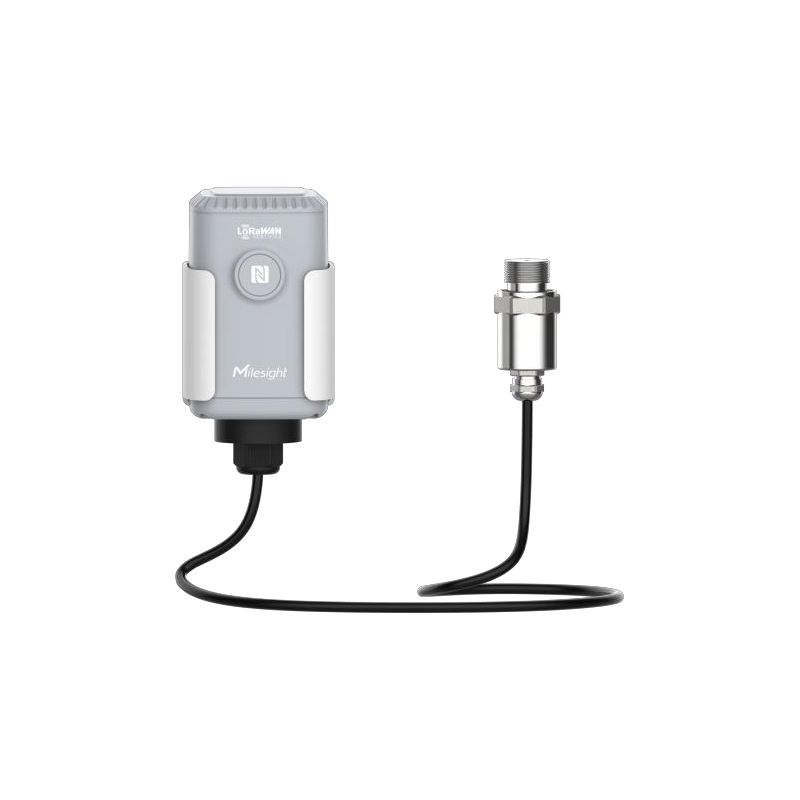

Milesight EM500-PP Pipe Pressure Sensor
Authorised Milesight UK Distributor£197.52 ex VAT (£237.02 inc. VAT)
The Milesight EM500-PP is a LoRaWAN pipe pressure sensor with a 316L stainless-steel vented-gauge probe on a 1.5 m cable and a G 1/2" male process connection. Its decisive figure is the measuring range: 0-1600 kPa (16 Bar) at ±0.5% FS. Use it for pipe and tank pressure, pump monitoring and leak detection; one 19000 mAh battery lasts 10 years.
Pressure measuring range0 - 1600 kPa (16 Bar), vented gauge
In stock · typically dispatched within 14 working days from the UK
● Quotes answered within one working day · UK support
Delivery & assurance
- Ships from the UK
- £14.25 flat UK delivery
- Secure checkout — card, Klarna, invoice
- Manufacturer's warranty
Questions about this product? Call our UK team: 023 9223 3611
Description
EM500-PP is designed for measuring pipe pressure in harsh
environments and transmitting data using LoRaWAN® technology. With this low power consumption technology, EM500-PP can work
up to 10 years with 19000 mAh battery. Combining with Milesight
LoRaWAN® gateway and Milesight IoT Cloud solution, users can
manage all sensor data remotely and visually. EM500-PP is widely used for applications like smart buildings, pipeline and tank systems
Range & Accuracy: 0 ~ 1600 kPa (16 Bar) ± 0.5% FS
1 * 19000mAh Li-SOCL2 Battery Battery Life: 10 Years (10 min Interval) Resolution: 1 kPa (0.01 Bar) NFC Enabled Cable Length: 1.5m (Customizable)
US$3.00 dollars for one meter extension cable.
Additional information
| Weight | 0.328 kg |
|---|

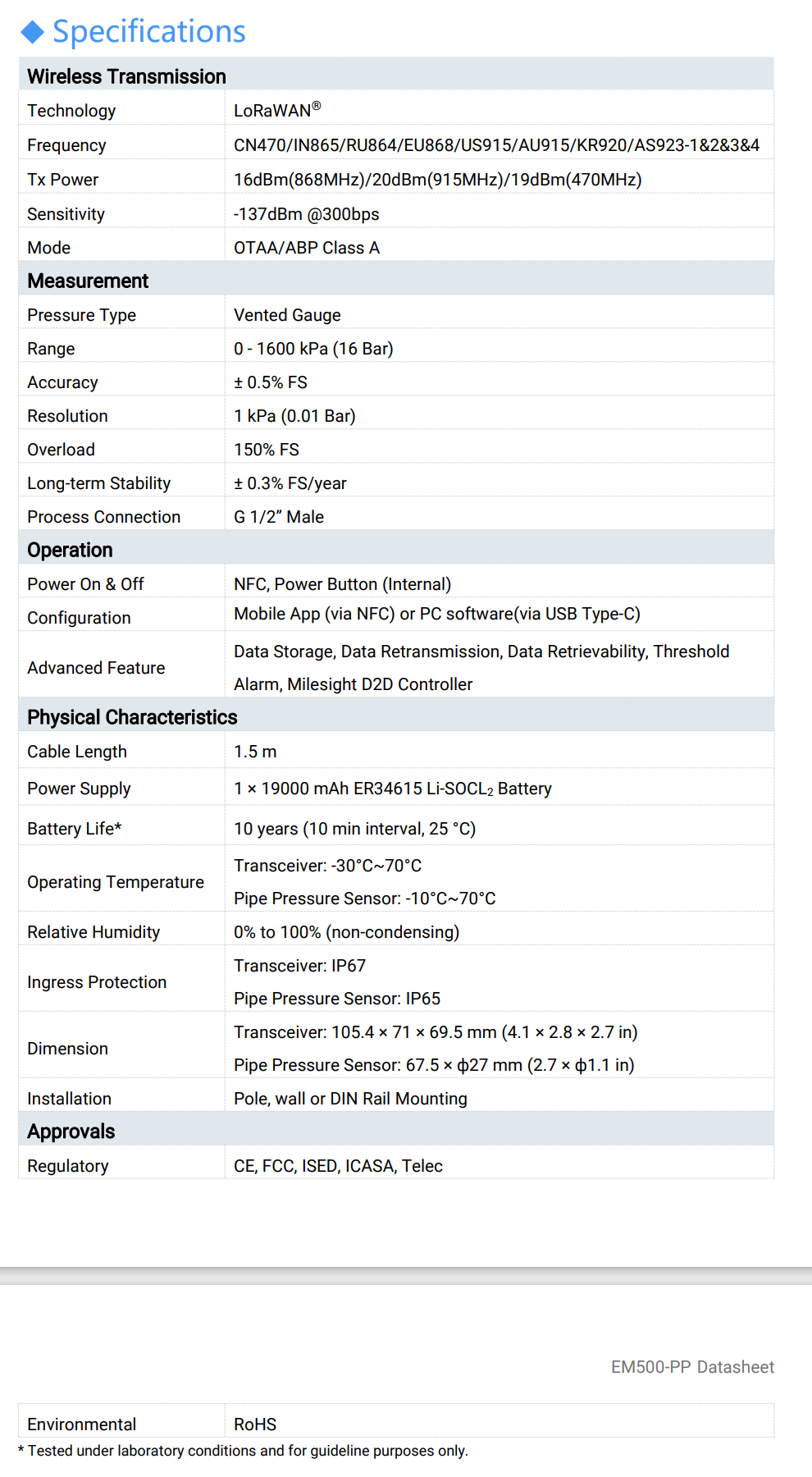

EM500-PP-868M specifications
| Pressure type | Vented gauge |
|---|---|
| Measuring range | 0 - 1600 kPa (16 Bar) |
| Accuracy | ± 0.5% FS |
| Resolution | 1 kPa (0.01 Bar) |
| Overload | 150% FS |
| Long-term stability | ± 0.3% FS/year |
| Process connection | G 1/2" male |
| Cable length | 1.5 m |
| Protocol / mode | LoRaWAN®; OTAA/ABP Class A |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx power / sensitivity | 16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz); -137 dBm @300bps |
| Configuration | Mobile app via NFC, PC software via USB Type-C, Downlink |
| Advanced features | Data storage (1000 entries), data retransmission, data retrievability, threshold alarm, Milesight D2D controller |
| Power supply | 1 × 19000 mAh ER34615 Li-SOCl2 battery |
| Battery life | 10 years (10 min interval, 25°C) |
| Operating temperature | Transceiver -30°C~70°C; pipe pressure sensor -10°C~70°C |
| Ingress protection | Transceiver IP67; pipe pressure sensor IP65 |
| Probe material | Stainless steel 316L |
| Dimensions & weight | Transceiver 105.4 × 71 × 69.5 mm, 328 g; probe 60.5 × Ф27 mm, 187 g |
| Installation | Pole, wall or DIN rail mounting |
| Approvals | CE, FCC, ISED, ICASA, Telec; RoHS |
Specifications taken from the manufacturer datasheet.
Which version do I need?
The datasheet lists selectable bands CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4. UK and EU LoRaWAN uses EU868, the band this -868M part is supplied on, at 16 dBm transmit power.
Typical applications for the EM500-PP-868M
- Pipe and tank pressure monitoring
- Oil and gas pipeline monitoring
- Water leak detection
- Pump performance monitoring
- Smart building plant room monitoring
Buying guides for this product
Frequency band
Supplied on EU868, the LoRaWAN band used in the UK and across Europe. That is the default and you do not need to ask for it — the -868M in the part number is the EU868 build.
The same EM500-PP-868M unit also covers IN865 and RU864. Those bands share the 863–870 MHz radio with EU868, so one device can be set to any of them in its own configuration — no different part number needed.
CN470, US915, AU915, KR920 and AS923 are a different radio and therefore a different build. Milesight makes them and we can order them: tell us where the devices are being deployed and we will confirm the part number, price and lead time.
Not sure which band applies where? The Things Network publishes the LoRaWAN frequency plan for every country.
Complete the stack
Products that work with this one — connect it, power it, and get it online.
Which gateway do I need? Compare the Milesight range, from £98.76 →
-

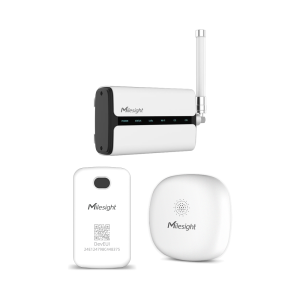

Milesight Water & Leak Monitoring Kit — Gateway + Level + Leak Sensors
KIT-WATER-LEAK £360.62 ex VAT (£432.74 inc. VAT) -
Milesight UG63 Mini LoRaWAN® Gateway
UG63 Price range: £98.76 through £131.68 ex VAT (£118.51 – £158.02 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page -
Milesight UG56 Industrial LoRaWAN Gateway
UG56 Price range: £173.58 through £213.98 ex VAT (£208.30 – £256.78 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page -
Milesight Smart Building Occupancy Kit — Occupancy + Air Quality + Gateway
KIT-OCCUPANCY £531.21 ex VAT (£637.45 inc. VAT)
EM500-PP-868M — frequently asked questions
What is the maximum pressure the EM500-PP can measure?
0 to 1600 kPa, which is 16 Bar, as a vented gauge measurement. Accuracy is ±0.5% FS, resolution 1 kPa (0.01 Bar), and overload tolerance is 150% of full scale.
How does it connect to the pipe?
Through a G 1/2" male process connection. The probe is 316L stainless steel, 60.5 × Ф27 mm, on a 1.5 m cable back to the transceiver, which mounts separately on a pole, wall or DIN rail.
What battery does it use and how long does it last?
One 19000 mAh ER34615 Li-SOCl2 battery, quoted at 10 years with a 10-minute reporting interval at 25°C under laboratory conditions. The battery is replaceable.
Is it suitable for wet or outdoor installations?
The transceiver is IP67 and the pressure probe is IP65. The transceiver operates from -30°C to 70°C and the probe from -10°C to 70°C, at 0-100% RH non-condensing.
Can it raise an alarm on its own?
Yes. It supports threshold alarms and acts as a Milesight D2D controller, so it can trigger another Milesight device directly without going through the gateway.
How much does the Milesight EM500-PP Pipe Pressure Sensor cost in the UK?
The Milesight EM500-PP Pipe Pressure Sensor is £197.52 ex VAT from Indiott, a UK distributor. The price is published rather than quote-only, and we invoice with VAT (PSI Technologies Ltd, VAT GB 730 2340 83). UK delivery is a flat £14.25 per order ex VAT, whatever the weight.
What is the lead time and delivery cost for the Milesight EM500-PP Pipe Pressure Sensor?
The Milesight EM500-PP Pipe Pressure Sensor is in stock and typically dispatched within 14 working days from the UK. UK delivery is a flat £14.25 per order ex VAT, whatever the weight or how many items you order. We ship to GB and the EU and provide a VAT invoice with every order.
