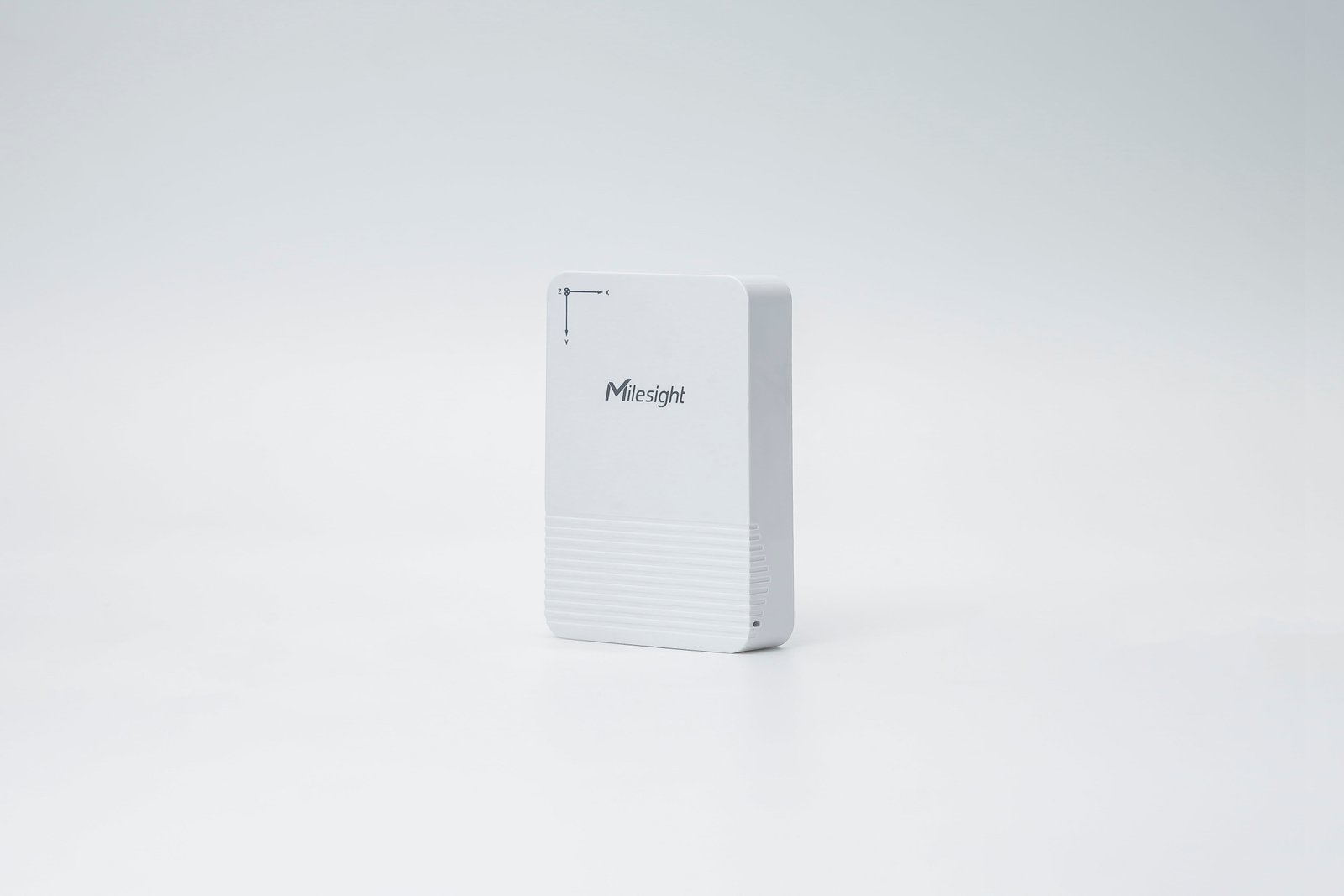

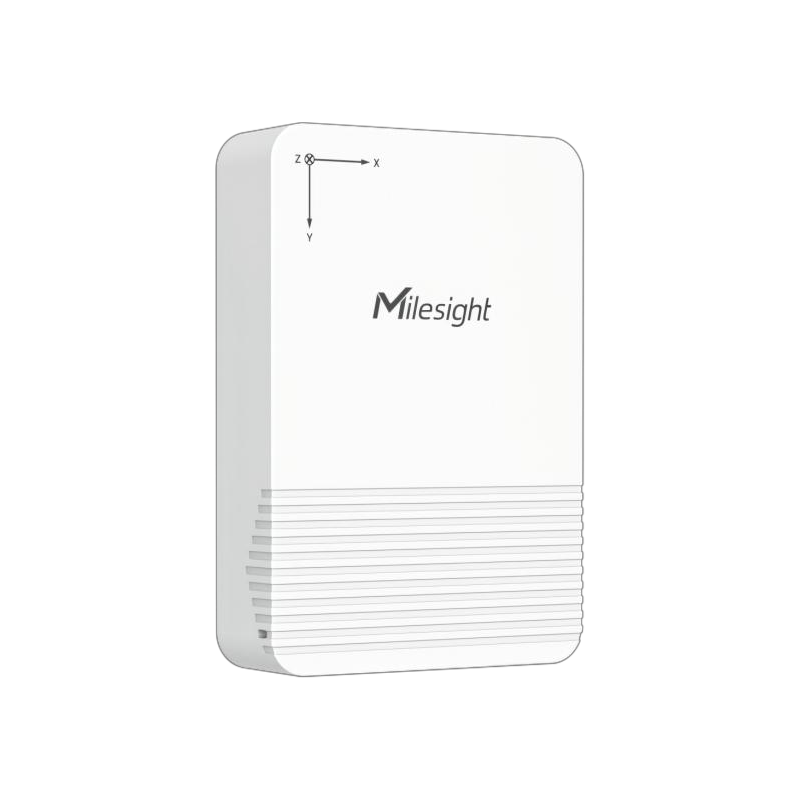

Milesight EM320-TILT Tilt Sensor
Authorised Milesight UK Distributor£62.85 ex VAT (£75.42 inc. VAT)
EM320-TILT is a LoRaWAN tilt sensor that measures the X, Y and Z angle of an object across a -90° to +90° range with ±1° accuracy and 0.01° resolution. Use it to detect lean or movement on trees, poles and ground anchors. It is IP67, runs on two replaceable ER14505 batteries and sends threshold alarms to any standard LoRaWAN gateway.
Angle measurement range-90° ~ +90° on X, Y and Z axes (±1°)
In stock · typically dispatched within 14 working days from the UK
● Quotes answered within one working day · UK support
Delivery & assurance
- Ships from the UK
- £14.25 flat UK delivery
- Secure checkout — card, Klarna, invoice
- Manufacturer's warranty
Questions about this product? Call our UK team: 023 9223 3611
Description

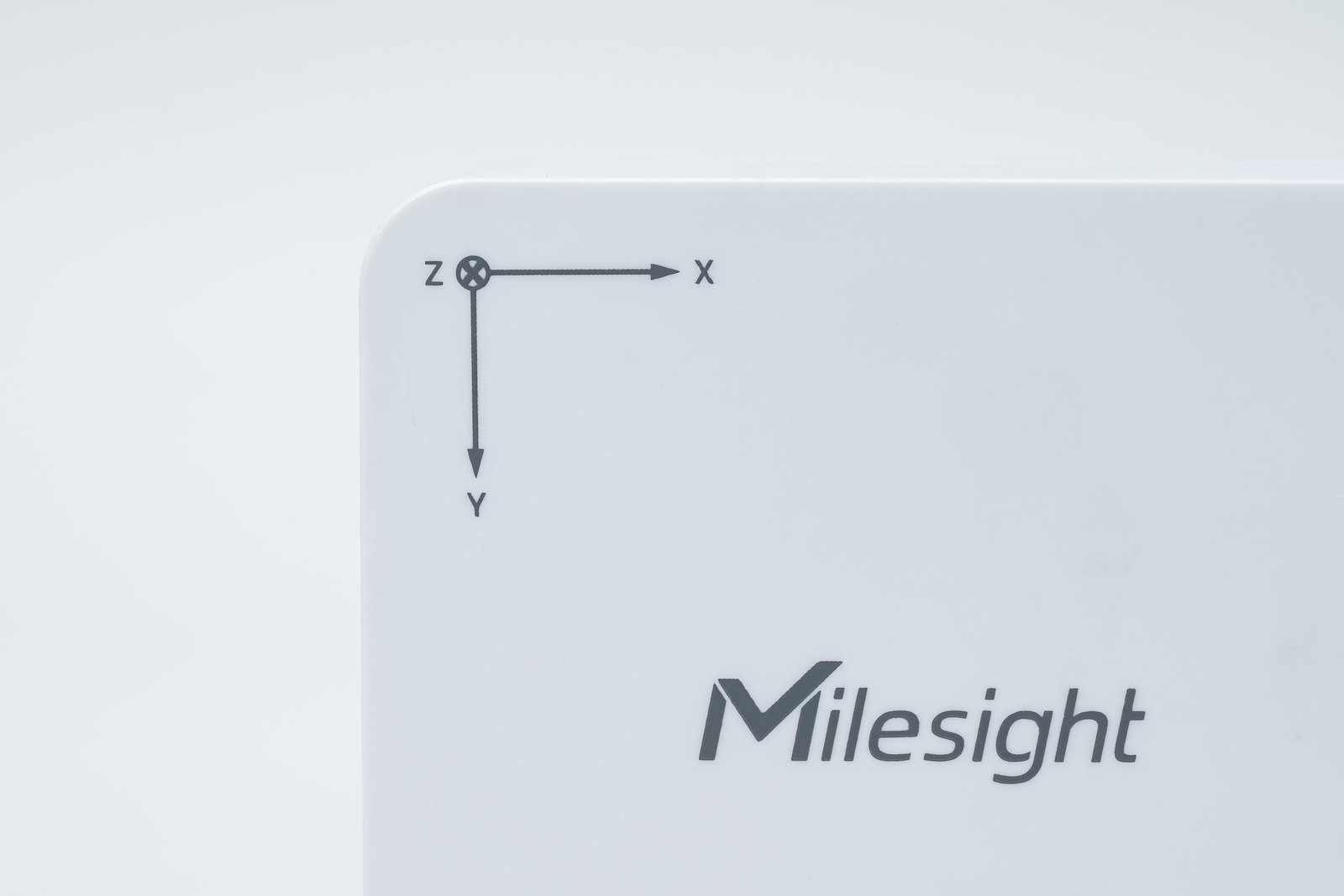

EM320-TILT is an LoRaWAN® tilt sensor mainly for angle measurement and asset movement detection. With a compact size and 3-axis accelerometer, EM320-TILT can be installed to the objects easily to measure its X, Y, Z tilt angles.
In addition, EM320-TILT supports customizing initial position to detect movement based on angle changes and send threshold alarms.
Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can know the angles and tilt threshold alarms in real-time via browser or mobile app remotely. EM320-TILT can be widely used in tree monitoring, pole lean detection, landslide monitoring, etc.
• Features
• Built-in MEMS accelerometer sensor to measure the 3-axis angles of any objects
• Flexible threshold condition settings, suitable for different kinds of applications
• Easy to install, suitable for various types of objects as trees, poles, grounds, etc. • IP67 waterproof enclosure for outdoor applications

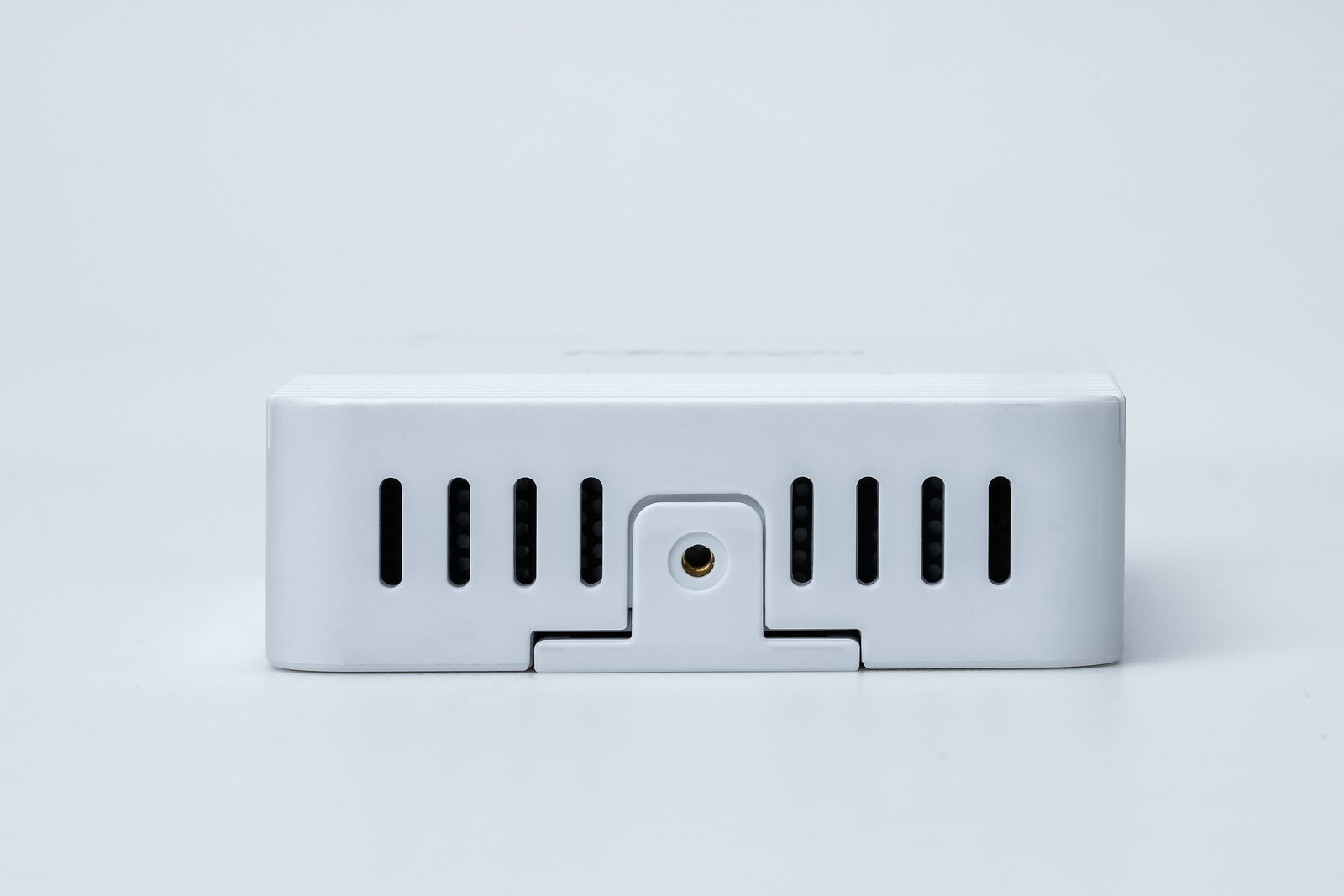

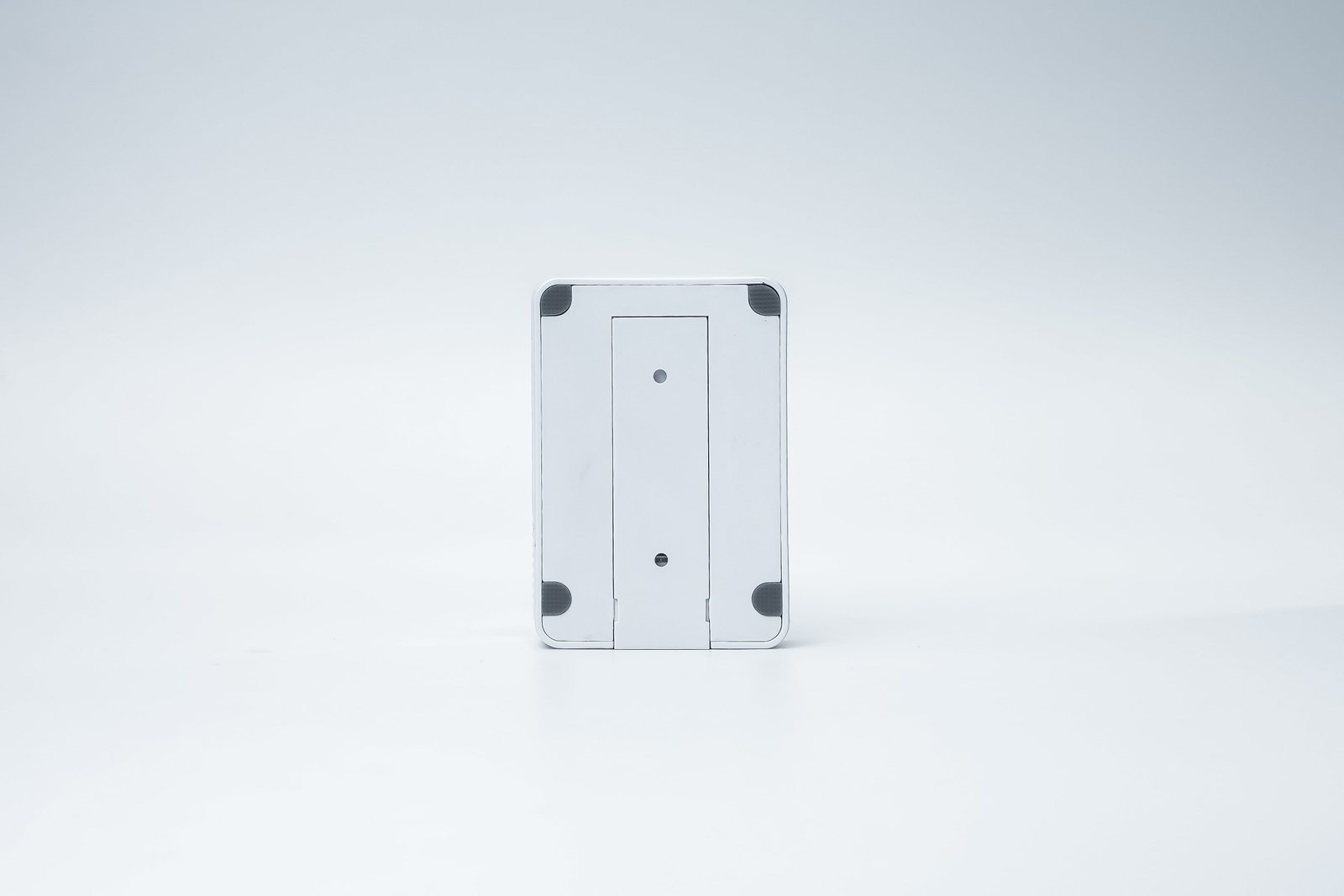

• Anti-theft design on back cover to secure firm and sturdy installation
• Ultra-wide-distance wireless transmission up to line of sight of 15 km
• Equipped with NFC for one touch configuration
• Function well with standard LoRaWAN® gateways • Compliant with Milesight IoT Cloud
Additional information
| Weight | 0.12 kg |
|---|

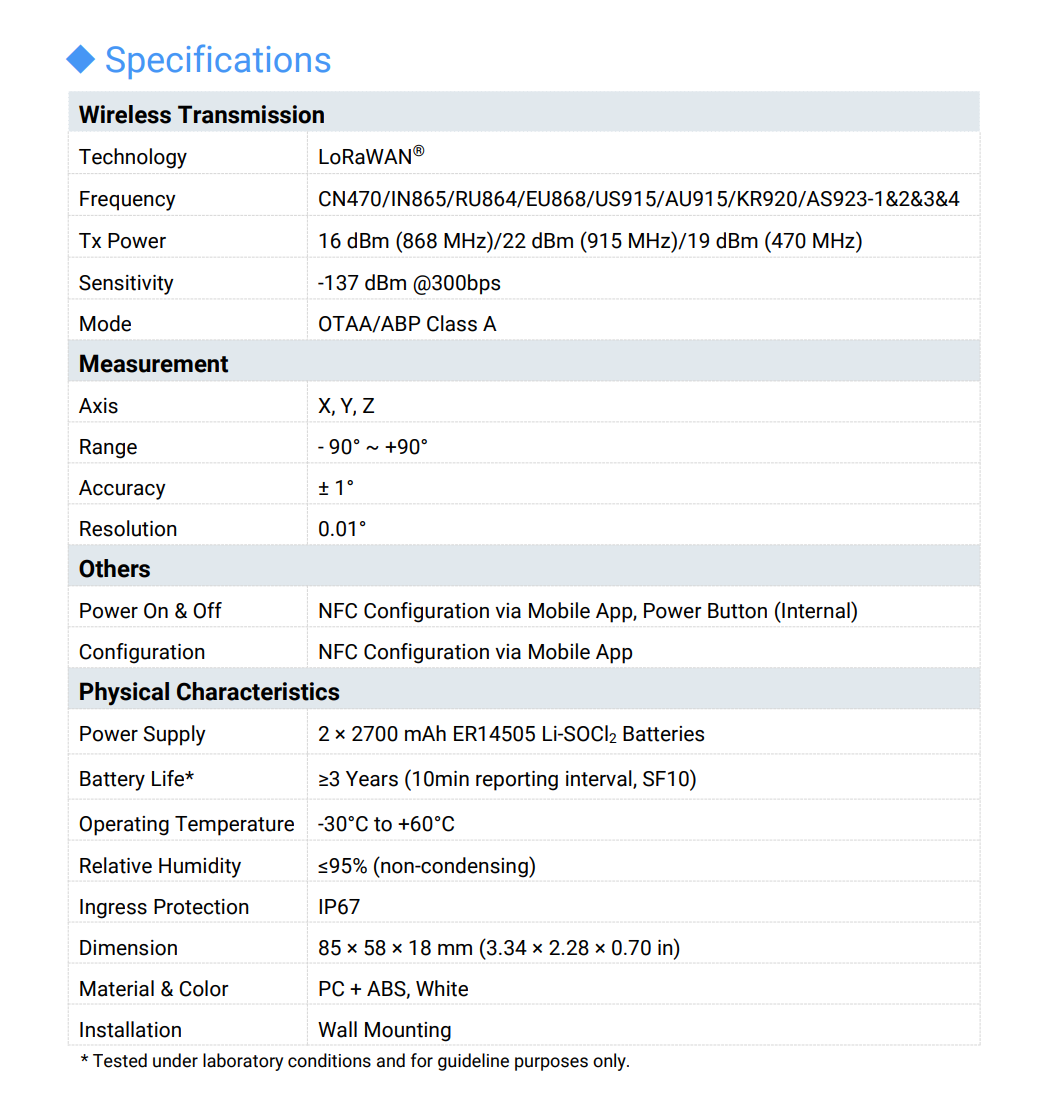

EM320-TILT-868M specifications
| Sensor type | Built-in MEMS accelerometer |
|---|---|
| Measurement axes | X, Y, Z |
| Measuring range | -90° ~ +90° |
| Accuracy | ±1° |
| Resolution | 0.01° |
| Wireless technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| LoRaWAN mode | OTAA/ABP Class A |
| Antenna | Internal antenna |
| Power supply | 2 × 2700 mAh ER14505 Li-SOCl2 batteries |
| Battery life (10 min interval, 25°C) | Around 4 years (SF7, EU868 & US915); around 3 years (SF10) |
| Operating temperature | -30°C to +60°C |
| Relative humidity | ≤95% (non-condensing) |
| Ingress protection | IP67 |

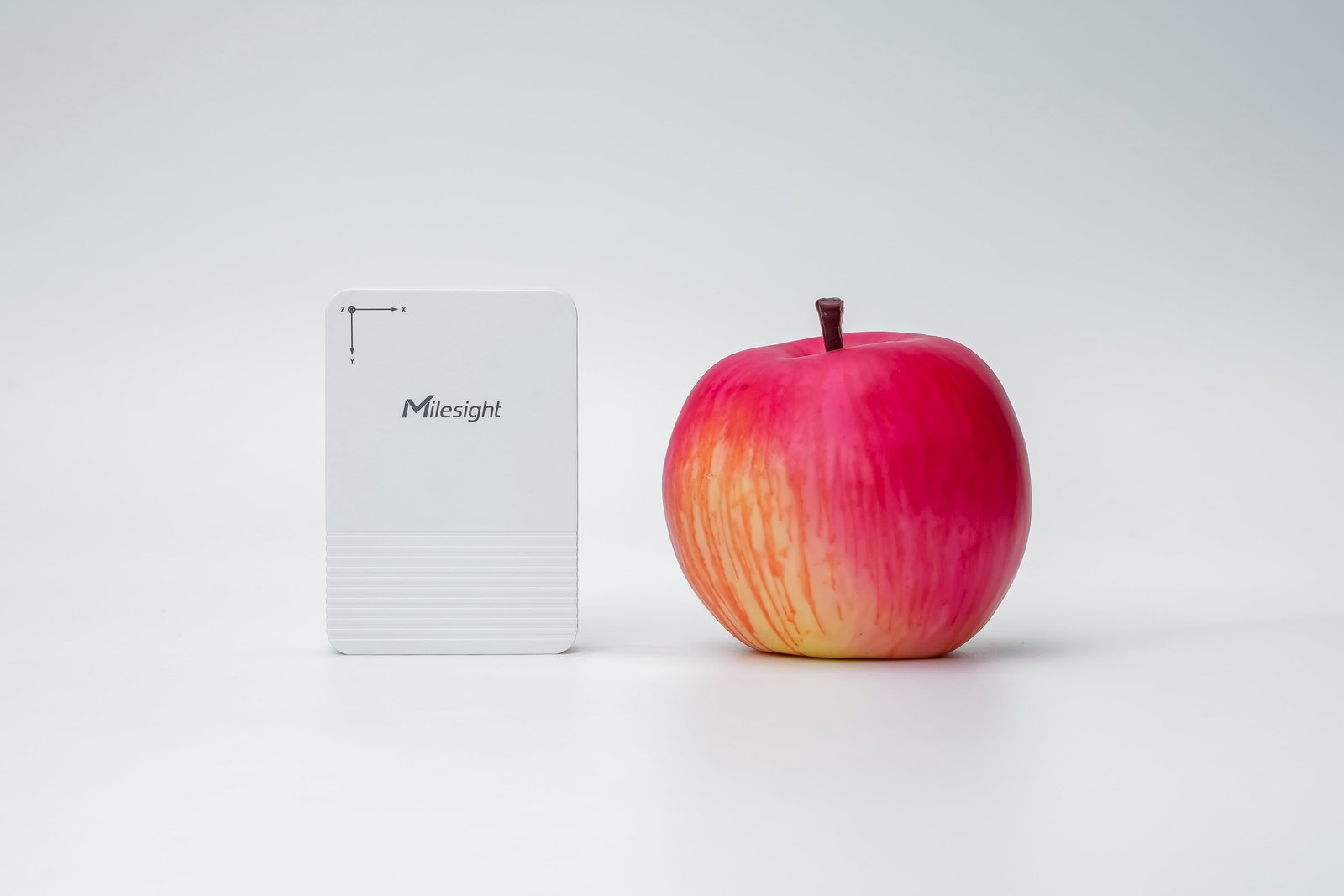

| Dimensions | 85 × 58 × 18 mm (3.34 × 2.28 × 0.70 in) |
| Housing & colour | PC + ABS, white |
| Installation | Wall screw mounting, pole mounting |
| Configuration | NFC configuration via mobile app |
| Approvals | CE, FCC, Telec; RoHS |
Specifications taken from the manufacturer datasheet.
Which version do I need?
The datasheet lists the band options CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 and gives 16 dBm Tx power at 868 MHz, but it does not spell out the part-number suffixes. The -868M build is the EU868 unit, which is the band used in the UK.
Typical applications for the EM320-TILT-868M
- Tree movement monitoring
- Pole lean detection
- Landslide and ground movement monitoring
- Asset movement detection
- Threshold alarm on angle change from a set initial position
Buying guides for this product
Frequency band
Supplied on EU868, the LoRaWAN band used in the UK and across Europe. That is the default and you do not need to ask for it — the -868M in the part number is the EU868 build.
The same EM320-TILT-868M unit also covers IN865 and RU864. Those bands share the 863–870 MHz radio with EU868, so one device can be set to any of them in its own configuration — no different part number needed.
CN470, US915, AU915, KR920 and AS923 are a different radio and therefore a different build. Milesight makes them and we can order them: tell us where the devices are being deployed and we will confirm the part number, price and lead time.
Not sure which band applies where? The Things Network publishes the LoRaWAN frequency plan for every country.
Complete the stack
Products that work with this one — connect it, power it, and get it online.
Which gateway do I need? Compare the Milesight range, from £98.76 →
-
Milesight UG63 Mini LoRaWAN® Gateway
UG63 Price range: £98.76 through £131.68 ex VAT (£118.51 – £158.02 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page -
Milesight UG56 Industrial LoRaWAN Gateway
UG56 Price range: £173.58 through £213.98 ex VAT (£208.30 – £256.78 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page -
Milesight Smart Building Occupancy Kit — Occupancy + Air Quality + Gateway
KIT-OCCUPANCY £531.21 ex VAT (£637.45 inc. VAT) -
Milesight SG50 Ultra Low Power Solar LoRaWAN® Gateway
SG50-868M Price range: £683.83 through £733.21 ex VAT (£820.60 – £879.85 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page
EM320-TILT-868M — frequently asked questions
What angle range can the EM320-TILT measure?
-90° to +90° on each of the X, Y and Z axes, with ±1° accuracy and 0.01° resolution, using a built-in MEMS accelerometer.
Does it need a LoRaWAN gateway?
Yes. It is a LoRaWAN Class A device (OTAA/ABP) and works with standard LoRaWAN gateways and network servers, and with Milesight IoT Cloud.
What batteries does it use and how long do they last?
Two 2700 mAh ER14505 Li-SOCl2 batteries. Milesight quotes around 4 years at SF7 and around 3 years at SF10 on EU868/US915, at a 10-minute interval and 25°C under laboratory conditions.
Can it be installed outdoors?
Yes. The enclosure is IP67 rated, the operating temperature is -30°C to +60°C and relative humidity up to 95% non-condensing. It mounts by wall screw or to a pole.
How is it configured?
By NFC from the Milesight mobile app. The LED indicator and the power/reset button are internal, and the back cover has an anti-theft design.
How much does the Milesight EM320-TILT Tilt Sensor cost in the UK?
The Milesight EM320-TILT Tilt Sensor is £62.85 ex VAT from Indiott, a UK distributor. The price is published rather than quote-only, and we invoice with VAT (PSI Technologies Ltd, VAT GB 730 2340 83). UK delivery is a flat £14.25 per order ex VAT, whatever the weight.
What is the lead time and delivery cost for the Milesight EM320-TILT Tilt Sensor?
The Milesight EM320-TILT Tilt Sensor is in stock and typically dispatched within 14 working days from the UK. UK delivery is a flat £14.25 per order ex VAT, whatever the weight or how many items you order. We ship to GB and the EU and provide a VAT invoice with every order.
