Milesight TS201 Temperature Sensor
Authorised Milesight UK DistributorPrice range: £44.89 through £52.37 ex VAT (£53.87 – £62.84 inc. VAT)

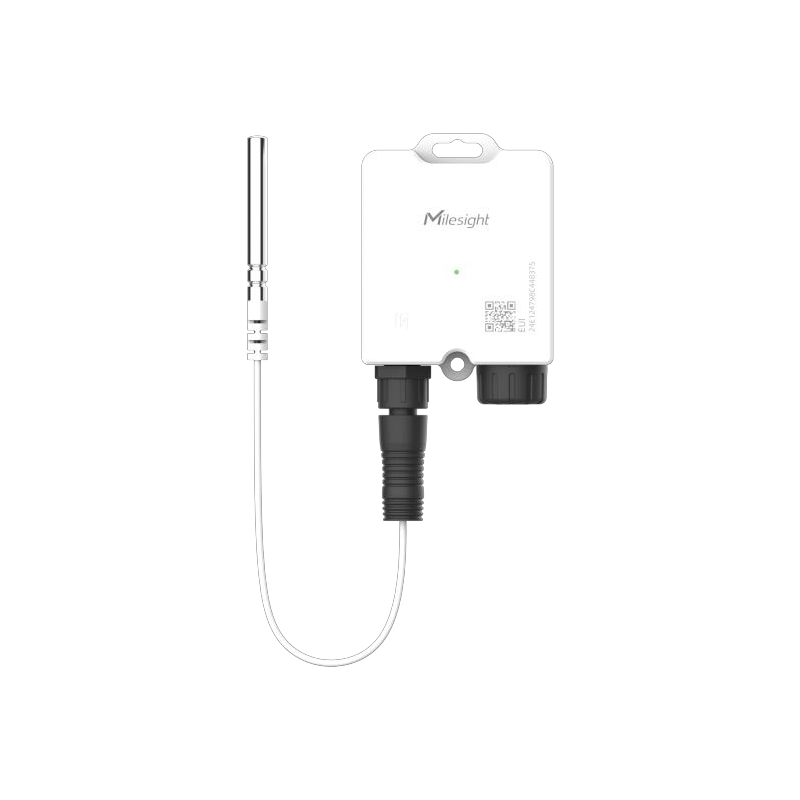

TS201 is a LoRaWAN temperature sensor with a detachable probe on a 1.5 m cable and a 5-pin M12 A-coded connector. The decisive spec is the probe measuring range: -40°C to 125°C at 0.1°C resolution, well beyond the -30°C to 55°C the transmitter body itself is rated for. It is IP67, EN12830 certified for cold chain, and runs on one replaceable AA lithium cell.
Probe temperature measuring range-40°C ~ 125°C
Need the gateway too? Build and price the whole kit →
In stock · typically dispatched within 14 working days from the UK
Kits that use this part: Fridge and freezer monitoring kit · Cellar monitoring kit · Plant room monitoring kit
● Quotes answered within one working day · UK support
Delivery & assurance
- Ships from the UK
- £14.25 flat UK delivery
- Secure checkout — card, Klarna, invoice
- Manufacturer's warranty
Questions about this product? Call our UK team: 023 9223 3611
Description
TS201 is a compact temperature and humidity sensor. It is equipped with
high-precision sensors and an IP67 waterproof design, making it applicable
for accurate temperature data detection in various harsh environments. With
the low power consumption technology, TS201 can maintain a long
operational life with its internal battery. When combined with Milesight
LoRaWAN® gateway and Milesight Development Platform solution, users can
manage all sensor data remotely and visually. TS201 is widely used for temperature and humidity monitoring applications
like cold chain storage of food or medicine, etc.
Additional information
| Weight | 0.253 kg |
|---|
TS201 specifications
| Connector type | 5-pin M12 A-coded male connector |
|---|---|
| Sensor type | DS18B20 (temperature version) or digital CMOSens® MEMS (TH version) |
| Temperature measuring range | -40°C ~ 125°C |
| Temperature accuracy | DS18B20 probe: ±0.5°C (-10°C ~ 85°C), ±2°C (-40°C ~ -10°C and 85°C ~ 125°C). CMOSens probe: ±0.3°C (-40°C ~ 0°C), ±0.2°C (0°C ~ 60°C), ±0.5°C (60°C ~ 125°C) |
| Temperature resolution | 0.1°C |
| Temperature long-term drift | Typ. < 0.2°C (125°C, VDD=5.5V, 1000h); Typ. < 0.03°C/year |
| Humidity measuring range | 0% ~ 100% RH (TH version only) |
| Humidity accuracy | Typ.: ±2% (25°C) |
| Humidity resolution | 0.5% RH |
| Technology | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Advanced features | Data retransmission, data retrievability, data storage (4000 entries), abrupt change alarm, Milesight D2D controller, Milesight D2D data transmission, FUOTA |
| Configuration | Mobile app (via NFC) or downlink |
| Power supply | 1 × 2700 mAh ER14505 Li-SOCl2 battery |
| Battery life | Around 8.2 to 9 years at SF7 on EU868 depending on probe version; around 2.7 to 2.8 years at SF10 on EU868 (10 min interval, 25°C) |
| Operating temperature (device) | -30°C ~ 55°C (-22°F ~ 131°F) |
| Relative humidity | 0% ~ 95% (non-condensing) |
| Ingress protection | IP67 |
| Housing | Device: ABS+PC, white; sensor cable: TPE, white; sensor probe: food-grade stainless steel (316 or 304 by version) |
| Cable and probe length | Sensor cable: 1.5 m; sensor probe: 50 mm |
| Weight | Device 70 g; sensor cable + probe 25 g or 26.5 g by version |
| Dimensions | 58 × 65 × 25 mm (2.28 × 2.56 × 0.98 in) |
| Installation | Wall screw mounting, cable-tie mounting, magnetic mounting (optional) |
| Approvals | CE, FCC, EN12830; RoHS |
Specifications taken from the manufacturer datasheet.
Which version do I need?
-868M is the EU868 band used in the UK. The datasheet also documents two probe versions on the same body: a Temperature version with a DS18B20 probe, and a TH version with a CMOSens temperature and humidity probe that additionally reports 0-100% RH. Both probes are food-grade stainless steel (316 and 304 across the datasheet's two columns). Confirm which probe version is supplied, as the part number suffix does not state it.
Typical applications for the TS201
- Cold chain storage of food
- Cold chain storage of medicine and pharmaceuticals
- Refrigeration and freezer temperature monitoring
- Temperature monitoring in harsh or washdown environments
- Remote temperature and humidity logging over LoRaWAN
Buying guides for this product
Frequency band
Supplied on EU868, the LoRaWAN band used in the UK and across Europe. That is the default and you do not need to ask for it — the -868M in the part number is the EU868 build.
The same TS201 unit also covers IN865 and RU864. Those bands share the 863–870 MHz radio with EU868, so one device can be set to any of them in its own configuration — no different part number needed.
CN470, US915, AU915, KR920 and AS923 are a different radio and therefore a different build. Milesight makes them and we can order them: tell us where the devices are being deployed and we will confirm the part number, price and lead time.
Not sure which band applies where? The Things Network publishes the LoRaWAN frequency plan for every country.
Complete the stack
Products that work with this one — connect it, power it, and get it online.
Which gateway do I need? Compare the Milesight range, from £98.76 →
-
Milesight UG63 Mini LoRaWAN® Gateway
UG63 Price range: £98.76 through £131.68 ex VAT (£118.51 – £158.02 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page -
Milesight UG56 Industrial LoRaWAN Gateway
UG56 Price range: £173.58 through £213.98 ex VAT (£208.30 – £256.78 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page -
Milesight Smart Building Occupancy Kit — Occupancy + Air Quality + Gateway
KIT-OCCUPANCY £531.21 ex VAT (£637.45 inc. VAT) -
Milesight SG50 Ultra Low Power Solar LoRaWAN® Gateway
SG50-868M Price range: £683.83 through £733.21 ex VAT (£820.60 – £879.85 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page
TS201 — frequently asked questions
What temperature range does the probe measure?
-40°C to 125°C at 0.1°C resolution. Note that the TS201 transmitter body itself is rated for -30°C to 55°C, so only the probe should be exposed to the extremes of that range.
Is the probe detachable?
Yes. The probe is detachable for self-calibration and connects through a 5-pin M12 A-coded male connector. The sensor cable is 1.5 m and the probe is 50 mm long.
Is it suitable for cold chain use?
It is EN12830 certified for cold-chain applications, IP67 rated with a specialised battery compartment design, and uses a food-grade stainless steel probe. It stores 4000 records locally with retransmission to prevent data loss.
What battery does it use and how long does it last?
One 2700 mAh ER14505 Li-SOCl2 battery. The datasheet quotes around 8.2 to 9 years at SF7 on EU868 depending on probe version, falling to around 2.7 to 2.8 years at SF10, tested at a 10-minute interval and 25°C.
Does it need a gateway?
It works with standard LoRaWAN gateways and network servers in OTAA/ABP Class A and with the Milesight Development Platform. It also supports the Milesight D2D protocol for direct low-latency control without a gateway.
How much does the Milesight TS201 Temperature Sensor cost in the UK?
The Milesight TS201 Temperature Sensor starts at £44.89 ex VAT from Indiott, with the exact figure depending on the variant you choose. Indiott is a UK distributor and invoices with VAT (PSI Technologies Ltd, VAT GB 730 2340 83). UK delivery is a flat £14.25 per order ex VAT, whatever the weight.
What is the lead time and delivery cost for the Milesight TS201 Temperature Sensor?
The Milesight TS201 Temperature Sensor is in stock and typically dispatched within 14 working days from the UK. UK delivery is a flat £14.25 per order ex VAT, whatever the weight or how many items you order. We ship to GB and the EU and provide a VAT invoice with every order.
