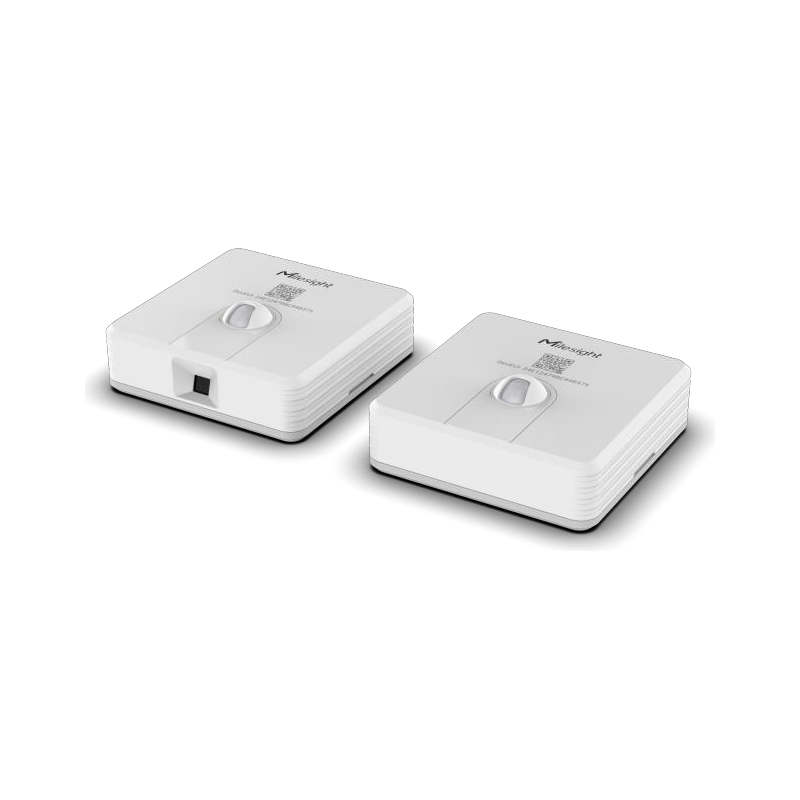

Milesight VS340 / VS341 Desk & Seat Occupancy Sensor
Authorised Milesight UK DistributorPrice range: £43.39 through £58.36 ex VAT (£52.07 – £70.03 inc. VAT)
The Milesight VS340 is a battery-powered LoRaWAN sensor that reports whether a single desk or seat is occupied. It uses a PIR element with a 107° × 107° detection area and a detection distance within 1 m, giving up to 95% recognition. Interchangeable PIR covers narrow or widen the field for single desks, face-to-face desks, bar tables or round tables.
Detection technology and recognition ratePIR only, up to 95% recognition (the VS341 Pro adds a thermopile for up to 98%)
Need the gateway too? Build and price the whole kit →
In stock · typically dispatched within 14 working days from the UK
● Quotes answered within one working day · UK support
Delivery & assurance
- Ships from the UK
- £14.25 flat UK delivery
- Secure checkout — card, Klarna, invoice
- Manufacturer's warranty
Questions about this product? Call our UK team: 023 9223 3611
Description
VS34x is an occupancy sensor designed to detect whether desks or seats in a workspace are occupied, allowing for better management and optimization of space usage. The standard version of the sensor VS340 uses PIR technology for detection.
The pro version VS341 applies additional Thermopile IR technology to provide more accurate and precise detection capabilities. VS34x features an adjustable field of view angle for greater flexibility in different scenarios.
With wireless detection and easy configuration, the VS34x offers reliable and convenient desk or seat arrangement optimization. It is compatible with Milesight LoRaWAN® gateway and IoT Cloud solution, enabling real-time monitoring of desks and seats’ status for effective remote management.
• Features
• Achieve up to 98% accuracy with a high-precision PIR sensor and an extra Thermopile IR
Temperature sensor in the pro version
• Dual versions are available, including standard and Pro, to accommodate different latency
requirements
• Provide different types of PIR covers for adjustable and flexible field angles and different
detecting ranges. • Support Milesight D2D protocol to enable ultra-low latency and directly control without
gateways
• V0 grade flame retardant material makes it adaptable to various scenarios, enhancing safety
and reliability
• Equipped with NFC for one-touch configuration, support card emulation mode
• Function well with standard LoRaWAN® gateways and network servers
• Compatible with Milesight
Additional information
| Weight | 0.09 kg |
|---|
Milesight VS340 / VS341 Desk & Seat Occupancy Sensor specifications
| Detection technology | PIR |
|---|---|
| Recognition rate | Up to 95% |
| PIR detection area | 107° horizontal, 107° vertical |
| PIR detection distance | Within 1 m |
| PIR cover options (at 70 cm height) | 70°×60° = 1 m × 0.9 m (single-person desk); 70°×107° = 1 m × 1.8 m (face-to-face desk); 107°×53.5° = 1.8 m × 0.9 m (bar table); 107°×107° = 1.8 m × 1.8 m (round table) |
| Wireless protocol | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx power | 16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz) |
| Sensitivity | -137 dBm |
| LoRaWAN mode | OTAA/ABP Class A |
| Configuration | NFC via mobile app (card emulation mode supported) |
| Advanced feature | Milesight D2D controller |
| Power supply | 1 × 4000 mAh ER18505 Li-SOCl2 battery |
| Battery life | Around 5 years (100 triggers per day, 25°C) |
| Operating temperature | -20°C ~ +60°C |
| Relative humidity | 0 ~ 95% (non-condensing) |
| Ingress protection | IP30 |
| Dimensions / weight | 73 × 73 × 26 mm (without PIR cover); 90 g |
| Housing | White + grey, PC + ABS (flame retardant, V0 grade) |
| Installation | 3M tape mounting or wall screw mounting |
Specifications taken from the manufacturer datasheet.
Which version do I need?
Two models share this datasheet. VS340 is the standard PIR version, up to 95% recognition. VS341 is the Pro version, adding a thermopile IR sensor with a 50° detection area at 50% sensitivity for up to 98% recognition, best between +10 and +30°C. The -868M suffix is the EU868 frequency build, which is what UK LoRaWAN networks use; the datasheet lists CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4.
Typical applications for the Milesight VS340 / VS341 Desk & Seat Occupancy Sensor
- Hot-desk and desk occupancy monitoring in offices
- Seat availability in shared workspaces
- Face-to-face desk banks (with the wide-vertical cover)
- Bar tables and round tables in break-out areas
- Space utilisation analytics
- Direct D2D control of desk-level equipment
Buying guides for this product
Frequency band
Supplied on EU868, the LoRaWAN band used in the UK and across Europe. That is the default and you do not need to ask for it — the -868M in the part number is the EU868 build.
The same Milesight VS340 / VS341 Desk & Seat Occupancy Sensor unit also covers IN865 and RU864. Those bands share the 863–870 MHz radio with EU868, so one device can be set to any of them in its own configuration — no different part number needed.
CN470, US915, AU915, KR920 and AS923 are a different radio and therefore a different build. Milesight makes them and we can order them: tell us where the devices are being deployed and we will confirm the part number, price and lead time.
Not sure which band applies where? The Things Network publishes the LoRaWAN frequency plan for every country.
Complete the stack
Products that work with this one — connect it, power it, and get it online.
Which gateway do I need? Compare the Milesight range, from £98.76 →
-
Milesight Smart Building Occupancy Kit — Occupancy + Air Quality + Gateway
KIT-OCCUPANCY £531.21 ex VAT (£637.45 inc. VAT) -
Milesight UG63 Mini LoRaWAN® Gateway
UG63 Price range: £98.76 through £131.68 ex VAT (£118.51 – £158.02 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page -
Milesight UG56 Industrial LoRaWAN Gateway
UG56 Price range: £173.58 through £213.98 ex VAT (£208.30 – £256.78 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page -
Milesight SG50 Ultra Low Power Solar LoRaWAN® Gateway
SG50-868M Price range: £683.83 through £733.21 ex VAT (£820.60 – £879.85 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page
Milesight VS340 / VS341 Desk & Seat Occupancy Sensor — frequently asked questions
What is the detection distance?
Within 1 m, over a 107° horizontal by 107° vertical PIR detection area. With the supplied covers at a 70 cm installation height the footprint is 1 m × 0.9 m, 1 m × 1.8 m, 1.8 m × 0.9 m or 1.8 m × 1.8 m depending on which cover is fitted.
What is the difference between the VS340 and the VS341?
The VS340 uses PIR alone with up to 95% recognition. The VS341 Pro adds a thermopile IR temperature sensor with a 50° detection area at 50% sensitivity, raising recognition to up to 98%; that figure is quoted for ambient temperatures of +10 to +30°C.
What battery does it use and how long does it last?
One 4000 mAh ER18505 Li-SOCl2 battery, quoted at around 5 years with 100 triggers per day at 25°C under laboratory conditions.
Does it need a gateway?
For reporting, yes: it uses standard LoRaWAN in OTAA/ABP Class A and works with standard LoRaWAN gateways and network servers, or Milesight IoT Cloud. It also acts as a Milesight D2D controller for direct control of another device without a gateway.
How does it mount?
3M tape or wall screws. The body is 73 × 73 × 26 mm without the PIR cover and weighs 90 g, in V0-grade flame-retardant PC + ABS. It is IP30 and rated -20°C to +60°C, so it is an indoor device.
How much does the Milesight VS340 / VS341 Desk & Seat Occupancy Sensor cost in the UK?
The Milesight VS340 / VS341 Desk & Seat Occupancy Sensor starts at £43.39 ex VAT from Indiott, with the exact figure depending on the variant you choose. Indiott is a UK distributor and invoices with VAT (PSI Technologies Ltd, VAT GB 730 2340 83). UK delivery is a flat £14.25 per order ex VAT, whatever the weight.
What is the lead time and delivery cost for the Milesight VS340 / VS341 Desk & Seat Occupancy Sensor?
The Milesight VS340 / VS341 Desk & Seat Occupancy Sensor is in stock and typically dispatched within 14 working days from the UK. UK delivery is a flat £14.25 per order ex VAT, whatever the weight or how many items you order. We ship to GB and the EU and provide a VAT invoice with every order.
