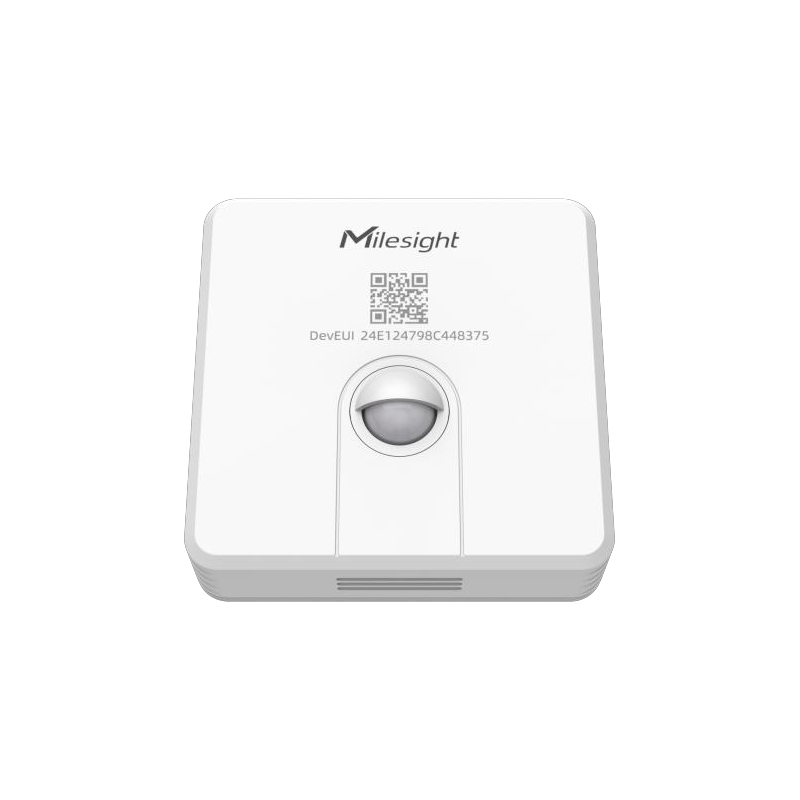

Milesight WS203 Motion & TH Sensor
Authorised Milesight UK Distributor£38.90 ex VAT (£46.68 inc. VAT)
The Milesight WS203-868M is a LoRaWAN motion and temperature/humidity sensor. Its PIR element has a maximum detection distance of 6 m over a 120° horizontal by 100° vertical area, and detected motion can trigger a temperature and humidity reading. Temperature range is -20°C to 60°C at ±0.2°C from 0-60°C, and humidity 0-100% RH at ±2% RH.
PIR Detection DistanceMaximum 6 m (120° horizontal, 100° vertical)
In stock · typically dispatched within 14 working days from the UK
● Quotes answered within one working day · UK support
Delivery & assurance
- Ships from the UK
- £14.25 flat UK delivery
- Secure checkout — card, Klarna, invoice
- Manufacturer's warranty
Questions about this product? Call our UK team: 023 9223 3611
Description
The Milesight WS203 is an environmental monitoring device that
combines motion and temperature/humidity (TH) sensors. By
detecting motion within an 8-meter range based on passive infrared
(PIR) technology, the WS203 can trigger TH detection and periodically
report environmental status over LoRaWAN® network. With easy configuration and wireless detection, the WS203 offers a
reliable and convenient solution for space and TH optimization. Compatible with Milesight LoRaWAN® gateway and IoT Cloud
platform, it enables real-time monitoring of occupant status for
effective remote management. The WS203 can find applications in
various settings including smart offices, buildings, hospitals, and
more.
• Features
• Equipped with passive infrared and Fresnel Lens for motion or occupancy detection
• Built-in high-accurate TH sensor along with PIR sensor enabling communicative triggers
• Provide different types of PIR covers for adjustable and flexible field angles and different
detecting ranges
• V0 grade flame retardant material makes it adaptable to various scenarios, enhancing safety
and reliability
• Store locally 1000 historical records and support retransmission to prevent data loss
• Equipped with NFC for one touch configuration and support card emulation mode
• Function well with standard LoRaWAN® gateways and network servers
• Compatible with Milesight IoT Cloud
Additional information
| Weight | 0.09 kg |
|---|
WS203-868M specifications
| PIR Detection Distance | Maximum 6 m |
|---|---|
| PIR Detection Area | 120° horizontal, 100° vertical |
| Temperature Range | -20°C ~ 60°C |
| Temperature Accuracy | Typ. ±0.3°C (-20°C ~ 0°C), ±0.2°C (0°C ~ 60°C) |
| Temperature Resolution | 0.1°C |
| Humidity Range | 0% ~ 100% RH |
| Humidity Accuracy | Typ. ±2% RH (25°C) |
| Humidity Resolution | 0.5% RH |
| Technology | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm |
| Mode | OTAA/ABP Class A |
| Antenna | Internal antenna |
| Power Supply | 1 × 4000 mAh ER18505 Li-SOCl2 battery |
| Battery Life (30 min report + 64 triggers/day, LED disabled, 25°C) | Around 10.7 years (SF7, EU868); around 5.4 years (SF10, EU868) |
| Operating Temperature | -20°C to +60°C |
| Relative Humidity | 0 to 95% (Non-condensing) |
| Ingress Protection | IP30 |
| Dimensions | 73 × 73 × 26 mm (2.87 × 2.87 × 1.02 in), without PIR cover |
| Weight | 89.6 g (battery included) |
| Colour & Material | White + Grey, PC + ABS (flame retardant, UL94 V0) |
| Installation | 3M tape mounting, wall screw mounting |
| Configuration | Mobile app via NFC, or downlink |
| Advanced Features | Milesight D2D controller, data storage (1,000 entries), data retransmission |
| Approvals | CE, FCC; RoHS |
Specifications taken from the manufacturer datasheet.
Which version do I need?
The -868M part number is the 868 MHz build. The datasheet lists EU868 among the supported frequency plans and quotes 16 dBm Tx power at 868 MHz. UK LoRaWAN uses EU868, so -868M is the correct UK variant. Interchangeable PIR covers are supplied to narrow the field: 120°×50°, 38°×50°, 38°×100° and 120°×100°, each rated to a maximum 6 m and a recommended 5 m at a 2 m wall-mount height.
Typical applications for the WS203-868M
- Smart office occupancy and comfort monitoring
- Meeting room and workspace utilisation
- Hospital and care environment monitoring
- HVAC control driven by occupancy plus temperature and humidity
- Triggering lighting or other Milesight devices by D2D on motion
Frequency band
Supplied on EU868, the LoRaWAN band used in the UK and across Europe. That is the default and you do not need to ask for it — the -868M in the part number is the EU868 build.
The same WS203-868M unit also covers IN865 and RU864. Those bands share the 863–870 MHz radio with EU868, so one device can be set to any of them in its own configuration — no different part number needed.
CN470, US915, AU915, KR920 and AS923 are a different radio and therefore a different build. Milesight makes them and we can order them: tell us where the devices are being deployed and we will confirm the part number, price and lead time.
Not sure which band applies where? The Things Network publishes the LoRaWAN frequency plan for every country.
Complete the stack
Products that work with this one — connect it, power it, and get it online.
Which gateway do I need? Compare the Milesight range, from £98.76 →
-
Milesight UG63 Mini LoRaWAN® Gateway
UG63 Price range: £98.76 through £131.68 ex VAT (£118.51 – £158.02 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page -
Milesight UG56 Industrial LoRaWAN Gateway
UG56 Price range: £173.58 through £213.98 ex VAT (£208.30 – £256.78 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page -
Milesight Smart Building Occupancy Kit — Occupancy + Air Quality + Gateway
KIT-OCCUPANCY £531.21 ex VAT (£637.45 inc. VAT) -
Milesight SG50 Ultra Low Power Solar LoRaWAN® Gateway
SG50-868M Price range: £683.83 through £733.21 ex VAT (£820.60 – £879.85 inc. VAT)Select options This product has multiple variants. The options may be chosen on the product page
WS203-868M — frequently asked questions
How far will the motion sensor detect?
The specification table gives a maximum PIR detection distance of 6 m over a 120° horizontal by 100° vertical area. At a 2 m wall-mounting height the recommended working distance is 5 m.
Can I narrow the detection field?
Yes. Different PIR covers are supplied, giving maximum areas of 120°×50°, 38°×50°, 38°×100° or 120°×100°, all to a maximum of 6 m. The covers can also be tailored as required.
How accurate are the temperature and humidity readings?
Temperature is typically ±0.3°C from -20°C to 0°C and ±0.2°C from 0°C to 60°C at 0.1°C resolution. Humidity is typically ±2% RH at 25°C across 0-100% RH at 0.5% RH resolution.
What battery does it use and how long does it last?
One 4000 mAh ER18505 Li-SOCl2 cell. Around 10.7 years at SF7 on EU868 or around 5.4 years at SF10, tested at a 30-minute report interval with 64 triggers a day and the LED disabled at 25°C.
Can it be fitted outdoors?
No. It is IP30 rated with an operating range of -20°C to +60°C, intended for indoor use such as offices, buildings and hospitals. It mounts with 3M tape or wall screws.
How much does the Milesight WS203 Motion & TH Sensor cost in the UK?
The Milesight WS203 Motion & TH Sensor is £38.90 ex VAT from Indiott, a UK distributor. The price is published rather than quote-only, and we invoice with VAT (PSI Technologies Ltd, VAT GB 730 2340 83). UK delivery is a flat £14.25 per order ex VAT, whatever the weight.
What is the lead time and delivery cost for the Milesight WS203 Motion & TH Sensor?
The Milesight WS203 Motion & TH Sensor is in stock and typically dispatched within 14 working days from the UK. UK delivery is a flat £14.25 per order ex VAT, whatever the weight or how many items you order. We ship to GB and the EU and provide a VAT invoice with every order.
