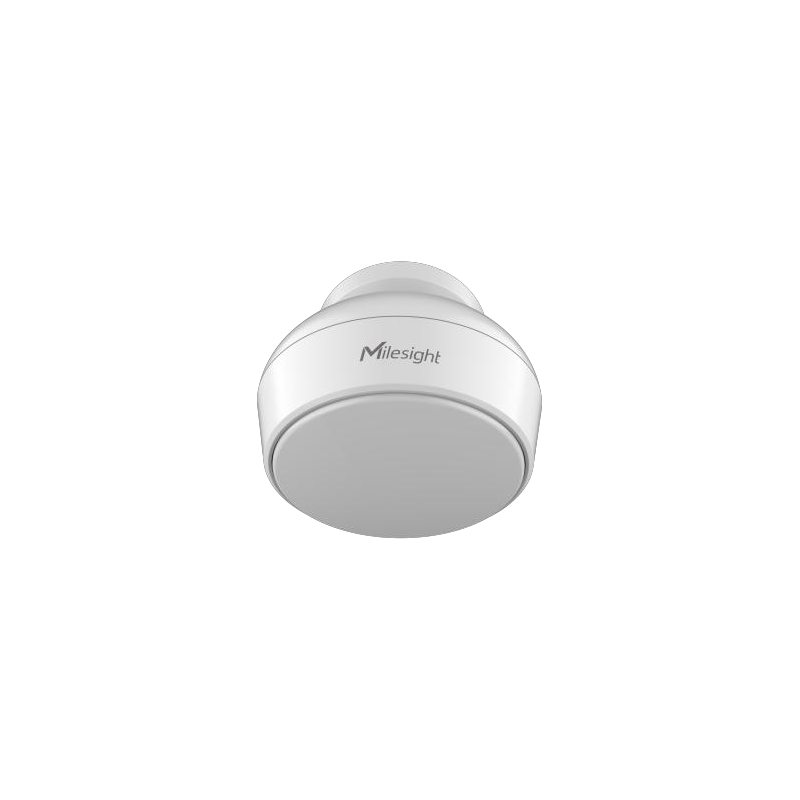

Milesight VS370 Radar Human Presence Sensor
VS370-868M

Milesight VS370 Radar Human Presence Sensor

Authorised Milesight UK Distributor
In stock UKMilesight
Where it sits in the stack
SENSECONNECTSECURECONTROLMANAGE

£74.82 ex VAT (£89.78 inc. VAT)

The Milesight VS370 is a battery-powered LoRaWAN human presence sensor combining 24 GHz millimetre-wave radar with PIR, so it registers people who are barely moving. Its decisive figure is radar detection distance: 7.5 m for movement and 4.8 m for slight movement across a 150° angle. Use it in meeting rooms and offices to drive lighting and HVAC.

Radar detection distanceMovement 7.5 m, slight movement 4.8 m, across a 150° detection angle

Not sure this is the right model?

Add to quote

Need the gateway too? Build and price the whole kit →

In stock · typically dispatched within 14 working days from the UK

● Quotes answered within one working day · UK support

Delivery & assurance

  • Ships from the UK
  • £14.25 flat UK delivery
  • Secure checkout — card, Klarna, invoice
  • Manufacturer's warranty

Ships to the UK & EU · VAT invoice provided · Delivery & returns

Questions about this product? Call our UK team: 023 9223 3611

Solutions this product serves
Occupancy & spacePeople counting

Description

DATASHEET

VS370 is a LoRaWAN® Radar Human Presence Sensor that adopts Millimeter Wave Radar and PIR technology. The sensor can detect human presence or slight movement and provide accurate human mobility statistics. Without any violation of privacy, VS370 has high detection accuracy with remarkable sensitivity, excellent algorithm performance, and
exceptional precision.

As a Milesight D2D controller, the VS370 seamlessly communicates with other Milesight D2D devices, establishing more possible connections and paving the way for smoother operations. It can also be linked with lighting control and HVAC system to achieve an automated scene deployment where the lights, HVAC system and other associated devices turn on when someone enters the room.

With easy configuration and wireless detection, VS370 can be integrated with Milesight LoRaWAN® gateway and Milesight Development Platform, enabling remote and visual management of all sensor data. VS370 can be used in various meeting rooms, conference rooms, and other
spaces requiring monitoring of human presence.

• Features
• Equipped with Millimeter Wave Radar and PIR technology, it can identify human slight-movement and moving object
slight-movement and moving object• Detachable and movable magnetic bracket with an additional 30° deflection angle to achieve
full area coverage
• 100% privacy protection, no specific images will be captured
• Working well even in low-light or completely dark environments with great lighting adaptability
• Support the sensitivity configuration of PIR and radar sensors, allowing for the selection of
different sensitivity levels based on actual scenarios
• Support Milesight D2D protocol to enable ultra-low latency and direct control without gateways
• Support customized hibernation periods to achieve flexible control and save battery power
• Easy configuration via NFC and Bluetooth, with support for wireless detection
• Support management and OTA upgrade via Milesight Development Platfor

Additional information

Weight 0.09 kg

VS370-868M specifications

TechnologyMillimetre wave radar & PIR
Recognition rateUp to 99%
Radar frequency24 GHz
Radar detection distanceMovement 7.5 m; slight movement 4.8 m
Radar detection angle150°
Radar Tx power5 dBm
PIR detection area / distance110°; within 7 m
Light statusBright/Dim
ProtocolLoRaWAN®, Milesight D2D
FrequencyCN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx power / sensitivity16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz); -137 dBm @300bps
LoRaWAN modeOTAA/ABP Class A
ConfigurationMobile app via NFC or Bluetooth, Downlink
Advanced featuresMilesight D2D controller, hibernate time setting, sensitivity setting, FUOTA
Power supply2 × 2700 mAh ER14505 Li-SOCl2 batteries
Battery lifeAround 6.7 years (SF7, EU868 & US915); around 5.3 years (SF10, EU868) at 50 triggers per day, 25°C
Operating temperature0°C ~ 30°C, 0-95% RH non-condensing
Ingress protectionIP30
Dimensions & weightФ70 × 48.5 mm; body 89.6 g, magnetic bracket 38.2 g
InstallationWall mounting via magnetic bracket (additional 30° deflection angle)
ApprovalsCE, FCC

Specifications taken from the manufacturer datasheet.

Which version do I need?

The datasheet lists selectable bands CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4. UK and EU LoRaWAN uses EU868, the band this -868M part is supplied on, at 16 dBm transmit power.

Typical applications for the VS370-868M

  • Meeting room and conference room occupancy
  • Automated lighting control on presence
  • HVAC control on presence
  • Desk and workspace utilisation monitoring
  • Occupancy-driven scenes via Milesight D2D

Buying guides for this product

Desk Occupancy Sensors →Fall Detection Sensors →

Frequency band

Supplied on EU868, the LoRaWAN band used in the UK and across Europe. That is the default and you do not need to ask for it — the -868M in the part number is the EU868 build.

The same VS370-868M unit also covers IN865 and RU864. Those bands share the 863–870 MHz radio with EU868, so one device can be set to any of them in its own configuration — no different part number needed.

CN470, US915, AU915, KR920 and AS923 are a different radio and therefore a different build. Milesight makes them and we can order them: tell us where the devices are being deployed and we will confirm the part number, price and lead time.

Not sure which band applies where? The Things Network publishes the LoRaWAN frequency plan for every country.

Complete the stack

Products that work with this one — connect it, power it, and get it online.

Which gateway do I need? Compare the Milesight range, from £98.76 →

Explore

All MilesightIoT SensorsOccupancy & spacePeople countingBrowse all productsAll solutions

VS370-868M — frequently asked questions

How far does the VS370 detect?

The 24 GHz radar detects movement to 7.5 m and slight movement to 4.8 m across a 150° detection angle. The PIR element covers 110° within 7 m.

Will it detect someone sitting still at a desk?

That is what the radar element is for. The datasheet specifies a separate slight-movement detection distance of 4.8 m, and quotes a recognition rate of up to 99% for human presence or slight movement.

What are the temperature limits?

Operating temperature is 0°C to 30°C at 0-95% RH non-condensing, with IP30 ingress protection, so it is intended for conditioned indoor spaces only.

What batteries does it use and how long do they last?

Two 2700 mAh ER14505 Li-SOCl2 batteries. Milesight quotes around 6.7 years at SF7 on EU868 and US915, and around 5.3 years at SF10/EU868, based on 50 triggers per day at 25°C under laboratory conditions.

How is it mounted and can the angle be adjusted?

It wall-mounts on a detachable, movable magnetic bracket that adds a 30° deflection angle to achieve full area coverage. Body and bracket together weigh under 130 g.

How much does the Milesight VS370 Radar Human Presence Sensor cost in the UK?

The Milesight VS370 Radar Human Presence Sensor is £74.82 ex VAT from Indiott, a UK distributor. The price is published rather than quote-only, and we invoice with VAT (PSI Technologies Ltd, VAT GB 730 2340 83). UK delivery is a flat £14.25 per order ex VAT, whatever the weight.

What is the lead time and delivery cost for the Milesight VS370 Radar Human Presence Sensor?

The Milesight VS370 Radar Human Presence Sensor is in stock and typically dispatched within 14 working days from the UK. UK delivery is a flat £14.25 per order ex VAT, whatever the weight or how many items you order. We ship to GB and the EU and provide a VAT invoice with every order.
